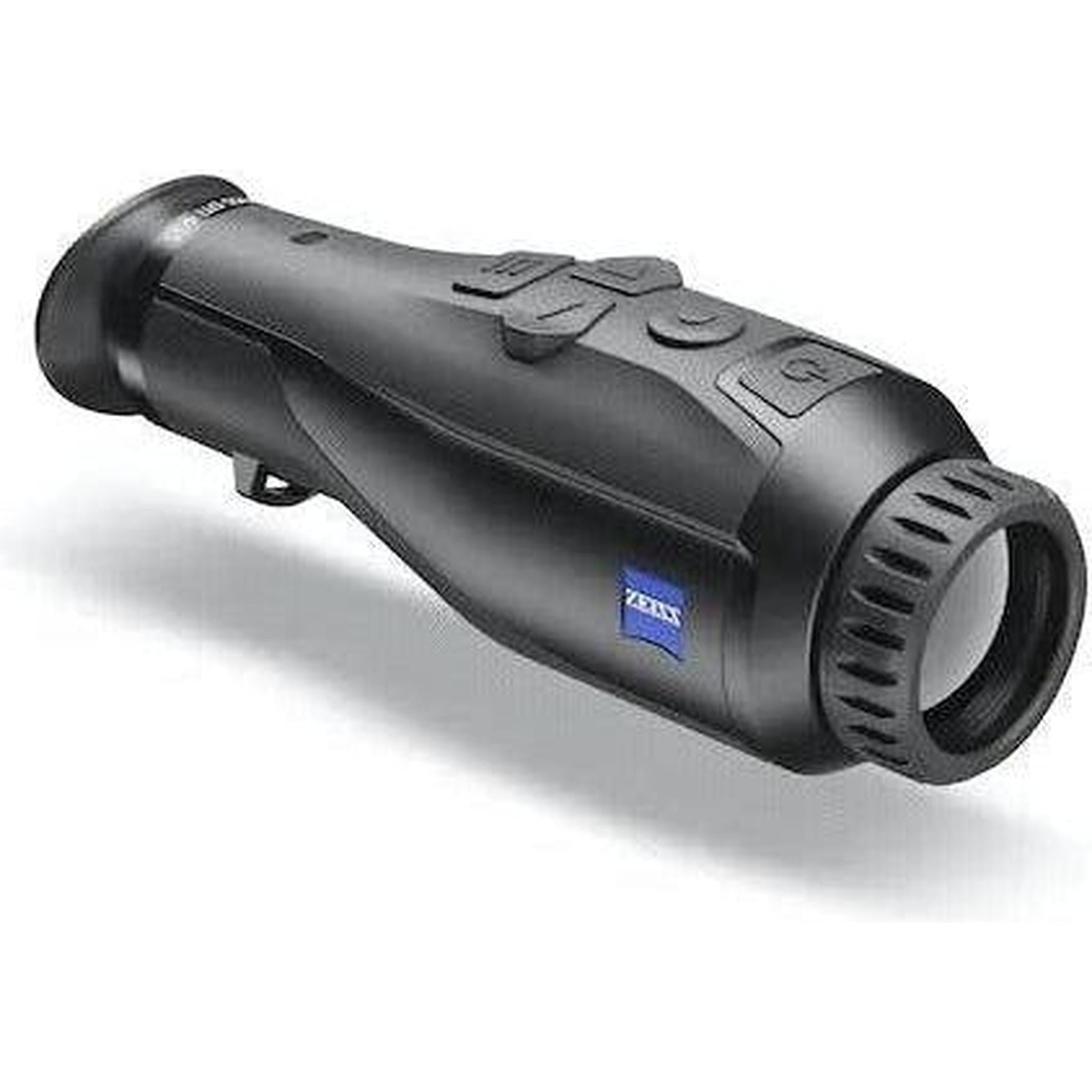

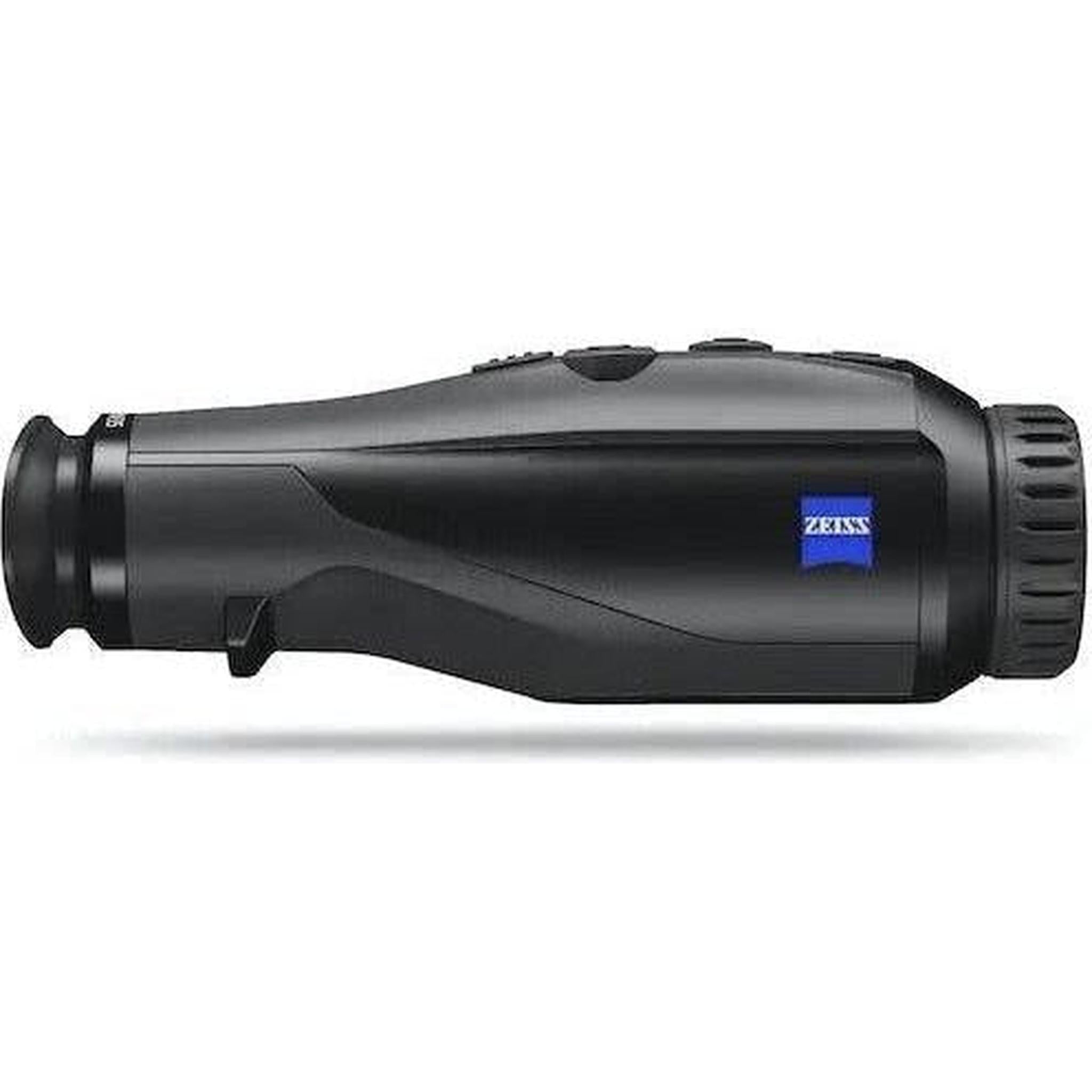

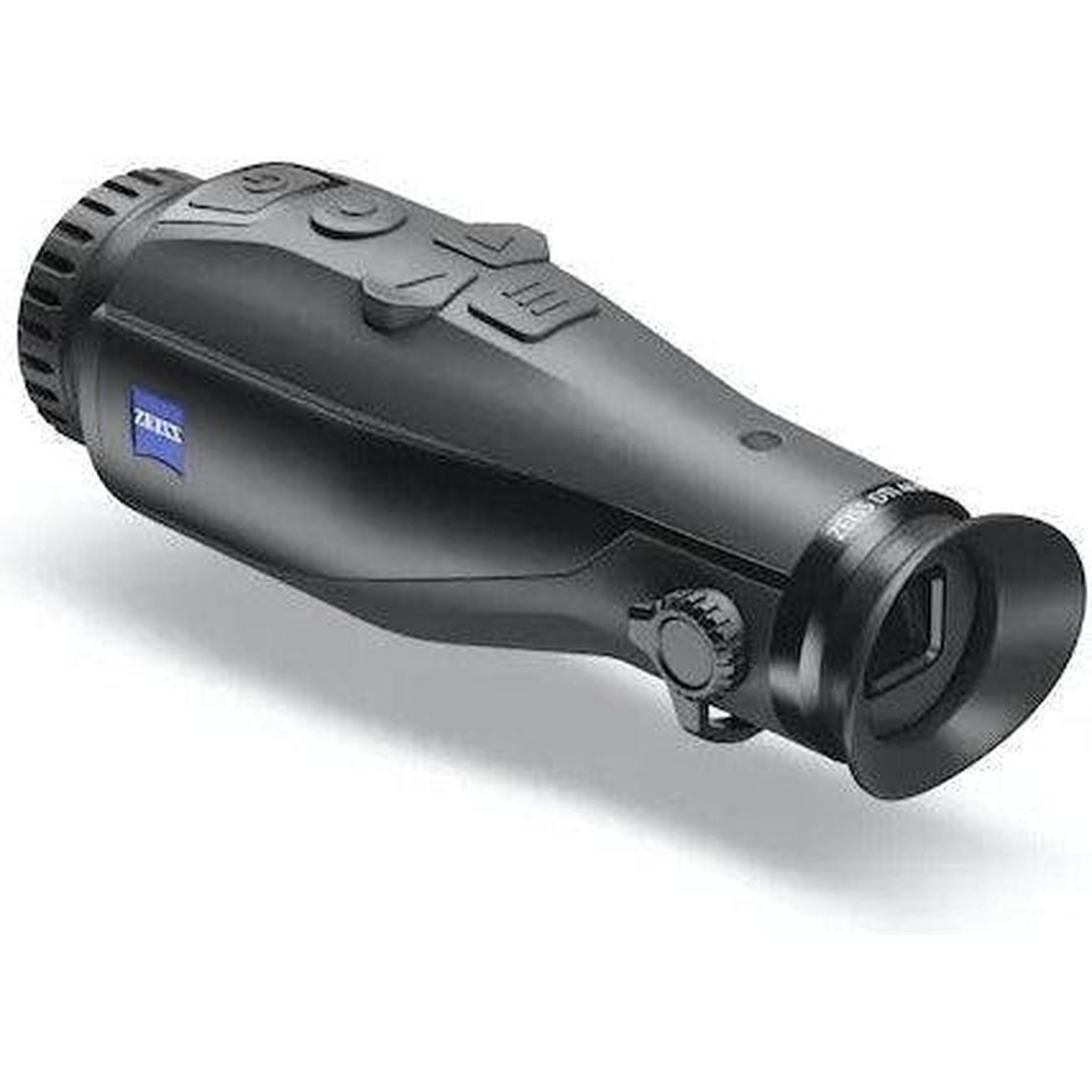

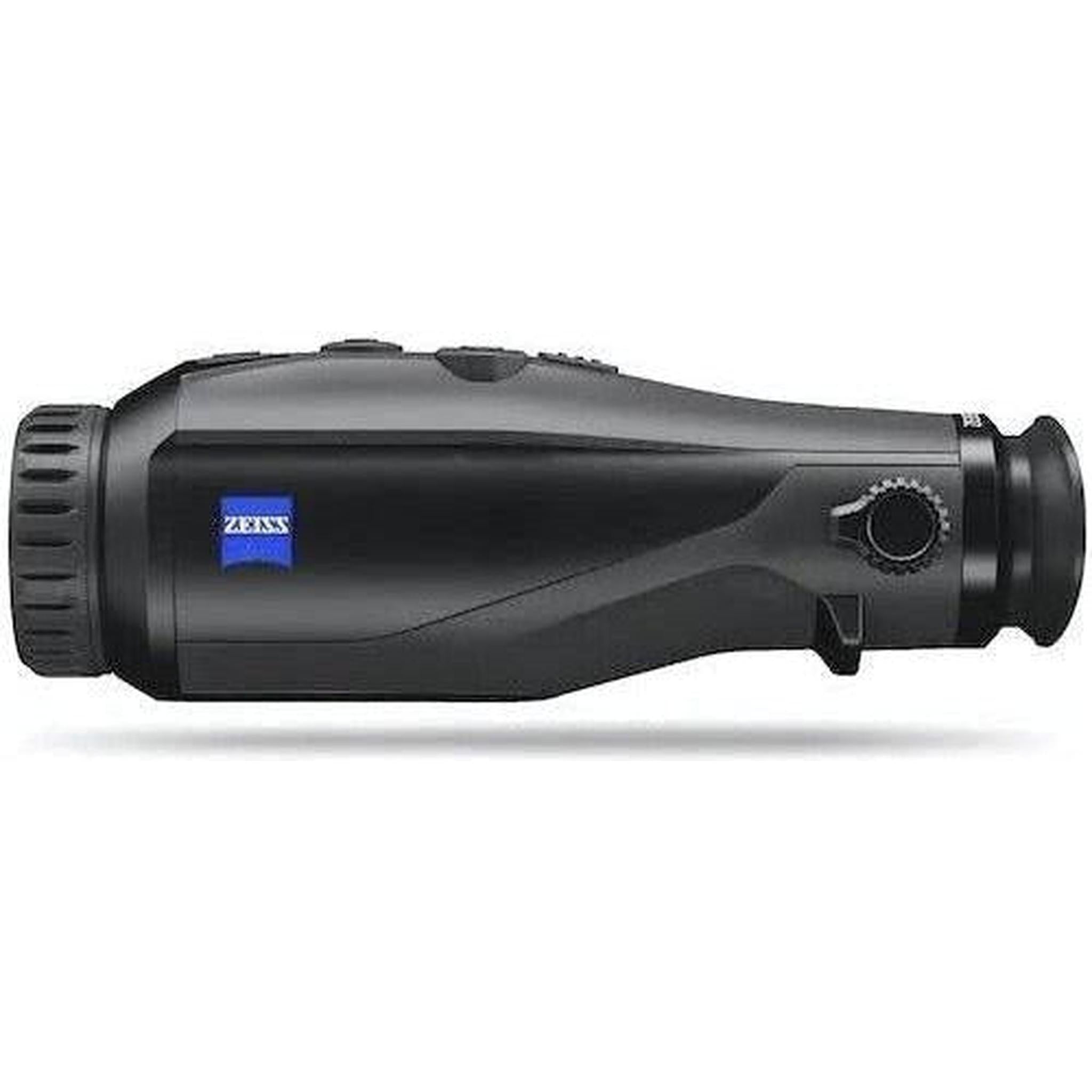

Zeiss Digital Thermal Imaging DTI 4/35

SKU: ZEDT-527017

Zeiss Digital Thermal Imaging DTI 4/35 - Jacobs Digital
Zeiss Digital Thermal Imaging DTI 4/35 - Jacobs Digital
Zeiss Digital Thermal Imaging DTI 4/35 - Jacobs Digital
Zeiss Digital Thermal Imaging DTI 4/35 - Jacobs Digital
Zeiss Digital Thermal Imaging DTI 4/35 - Jacobs Digital
Zeiss Digital Thermal Imaging DTI 4/35 - Jacobs Digital
Zeiss Digital Thermal Imaging DTI 4/35 - Jacobs Digital

Our Price

$4,898.99

$4,898.99
Plus Free Shipping

Green truck Usually Ships in 2-3 Days An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

When will I receive it?

About this product

ZEISS DTI 4/35

For consistent optimal performance. Large field of view for more details.

The pinnacle in Thermal optics just got better with these new offerings from Zeiss. Peak performance meets Peak craftsmanship. This 4/35 Offers 1 kilometre of thermal performance, with 6.5hrs of battery life. The new picture in picture mode allows you to keep an eye on your target whilst surveying the area.

High detail recognition with 640 x 512 px Sensor



The new 640 x 512 sensor offers higher image resolution for better image quality at all zoom levels, as well as a longer detection range with less noise at the same zoom level compared to a smaller sensor. As a result, it offers more detail detection at greater distances.

Smart Standby for Extended Battery Life



When out in the nature, the nearest power source is often far away. You usually need a portable charger to make sure your device doesn’t run out of power – which means extra weight and equipment to keep in mind. With an impressively long battery life of 7 hours, the DTI 4 models will hold enough charge for two to four birding trips. Extend the battery life even further by activating the smart standby function.

Three observation modes for every situation



Different environmental situations require a different device setting. The DTI 4 has three pre-programmed observation modes: universal, detect and fog. Detection mode, for example, highlights heat sources even more while reducing the cold background. This allows you to see animals behind trees and bushes better than before.



Unique Movement Alert



The Movement Alert tracks the hottest heat source in the image and notifies the user when that heat source moves. The LED on the top of the unit will start flashing or optionally the display will turn on. It is thus possible to monitor a large area without holding the camera all the time.

ZEISS thermal imaging cameras offer 8 different color modes, so you can choose the setting that best fits your needs. "Black hot" and "white hot" deliver images with a high level of contrast. When observing in areas with vast vegetation, "red hot" allows for a fast detection of heat sources. The color mode "rainbow" is ideal for identifying the smallest differences in temperature. In addition, four color modes have been redesigned to reduce the glare of the screen in a dark environment and reduce eye strain. "Red Hue" mode more easily adjusts your eyes to the darkness. "Dark Hue" is easier on your eyes by using low luminescence colors. "Green Hue" shows plenty of detail at low screen brightness, and "Night Eye" highlights the warmest areas of the thermal image in a pleasant sepia tone.

The ZEISS DTI cameras featuring a display frame rate of 50 Hz. This refers to the number of times per second your monitor can redraw the screen. A higher display frame rate results in decreased flickering of the image, thereby reducing eye strain when using for several hours at a time.Text

In 'Hot Tracking' mode, the warmest source in the image is framed with a red square. Finding heat sources in densely overgrown areas and tracking them is therefore easier.

You can use the compass overlay to determine the direction of the observed bird or get your own bearings. This can be especially helpful for orientation, or if you are out birding in company and want to coordinate your different locations and observations.

Performance

Focal length

20 mm

Aperture

f/1.0

Field of view at 100 m (yds)

38 m (125 ft)

Objective viewing angle

22° x 16°

Range

1000 m (1093 yd)

Sensor resolution

640 x 480

Sensor pixel pitch

12 μm

NETD value

≤ 35 mK

Display resolution

1024 x 768

Display frame rate

50 Hz

Display type

AMOLED

Optical magnification

1,5

Maximum digital zoom

10x

Zoom steps

0.1x – 1.0x

Features

Battery type

Li-Ion

Battery run time

6,5 h

Internal memory

16 GB

WLAN

2.4 Ghz

Bluetooth

+

Livestream function (Video & Photo)

+

Physical

Operating temperature

− 20°C | + 50°C (- 4°F | + 122°F)

Length x Width x Height

230 x 62 x 68 mm (9.1 x 2.4 x 2.7")

Weight

690 g (1.52 lbs)
