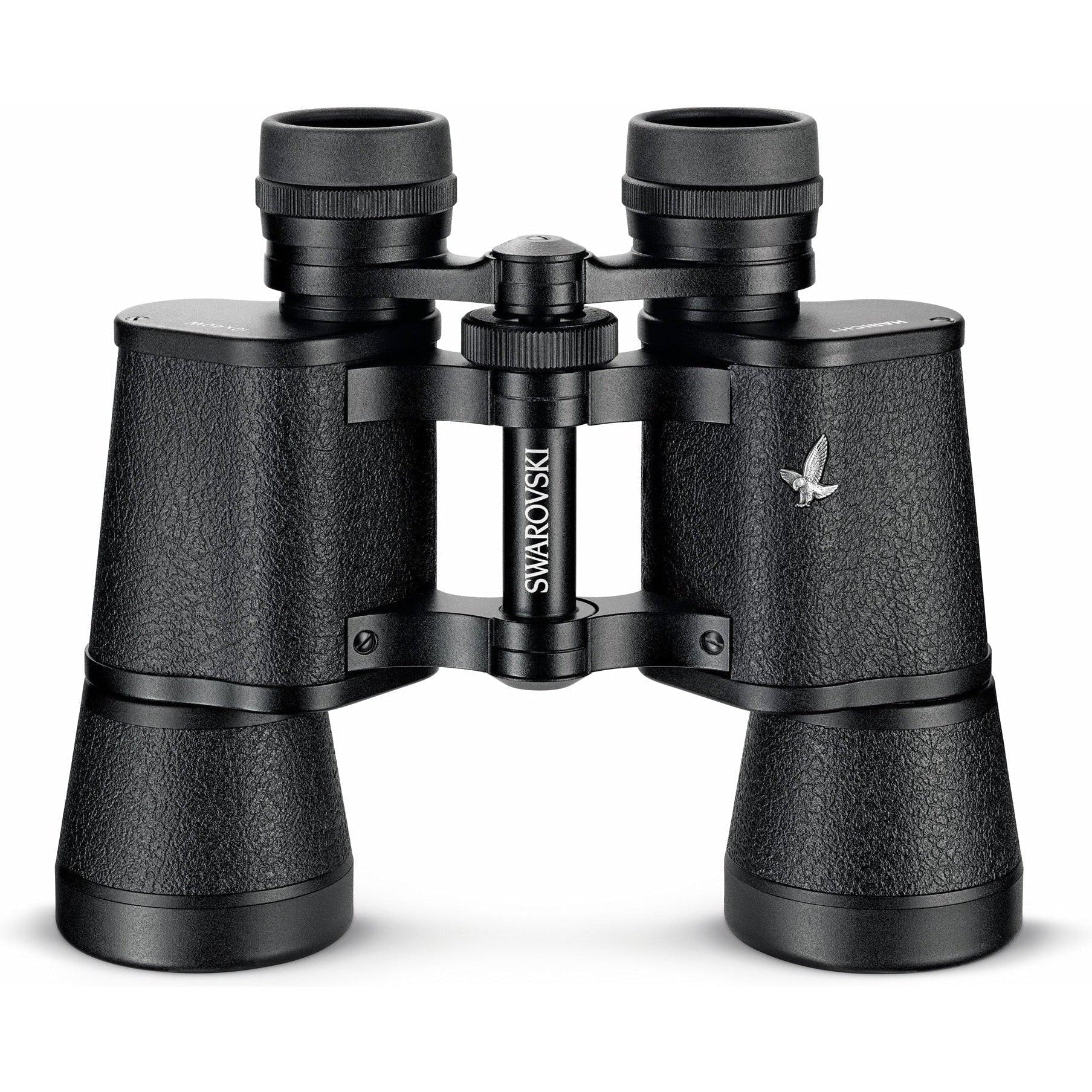

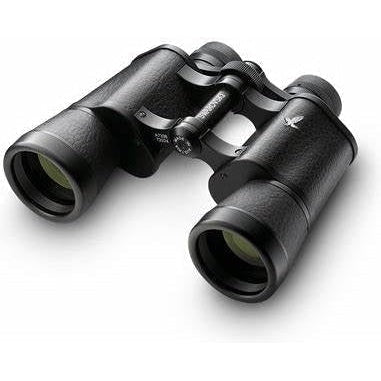

Swarovski HABICHT 10X40 W Binocular

SKU: DF-1H1M90-0

Swarovski HABICHT 10X40 W Binocular - Jacobs Digital
Swarovski HABICHT 10X40 W Binocular - Jacobs Digital

Our Price

$2,090.00

$2,090.00

Green truck Usually ships in 2 weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

2000

209000

Shipping calculated at checkout

When will I receive it?

About this product

As a conventional, lightweight pair of binoculars, the Habicht model offers impressive technical specifications. Even the use of the Porro design reflected the desire for greater detail recognition, which is provided with the 10x magnification.



MAGNIFICATION

The magnification specifies the factor by which an object appears to be closer in comparison with the actual distance. The higher the magnification, the closer the object seems to be. However, a higher magnification also means a smaller field of view. Check the precise product name as the number in front of the ‘x’ specifies the magnification. For example, 10x42 is a device with 10x magnification.


FIELD OF VIEW

The field of view describes the size of the image section that can be seen through the optics. This is specified either in meters (width) at a distance of 1000 meters (m/1000m), or feet (width) at a distance of 1000 yards (ft/1000 yds), or as an angle (degrees). The higher the magnification, the smaller the field of view.
Binoculars have a large field of view, which means you can see a wide area. Spotting scopes have a higher magnification, which makes the field of view much smaller, but you can see more detail.

OBJECTIVE LENS DIAMETER

The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. For example, a device with the suffix 10x42 has an objective lens with a diameter of 42 mm.

SHORTEST FOCUSING DISTANCE

The shortest focusing distance specifies how close an object needs to be to see it clearly with the optics. Between this value and infinity, it is possible to focus the image.



COLOR
black
OBJECTIVE

10xMagnification
40 mm Effective objective lens diameter
4 mm Exit pupil diameter
13 mm exit-pupil-distance-eye-relief-mm
108 m/1000m Field of view at m/1,000 m / ft/1,000 yds
6.2 °Field of view degrees
5.2 °Field of view with eye glasses (°)
60 °Field of view apparent
4 m Shortest focusing distance
± 5 dptDiopter adjustment
5 dptDiopter correction at ∞
96 %Light transmission
56-72 mmPupil distance
20Twilight factor acc. to
ISO 14132-1
SIZE & WEIGHT

151 mmLength in mm.
172 mmWidth in mm.
55 mmHeight in mm.
690 Weight
ENVIRONMENT & CONDITIONS

-25 to +55 °CFunctional temperature
-30 to +70 °CStorage temperature
13 ft / 4 m water depth (inert gas filling)Submersion tightness
