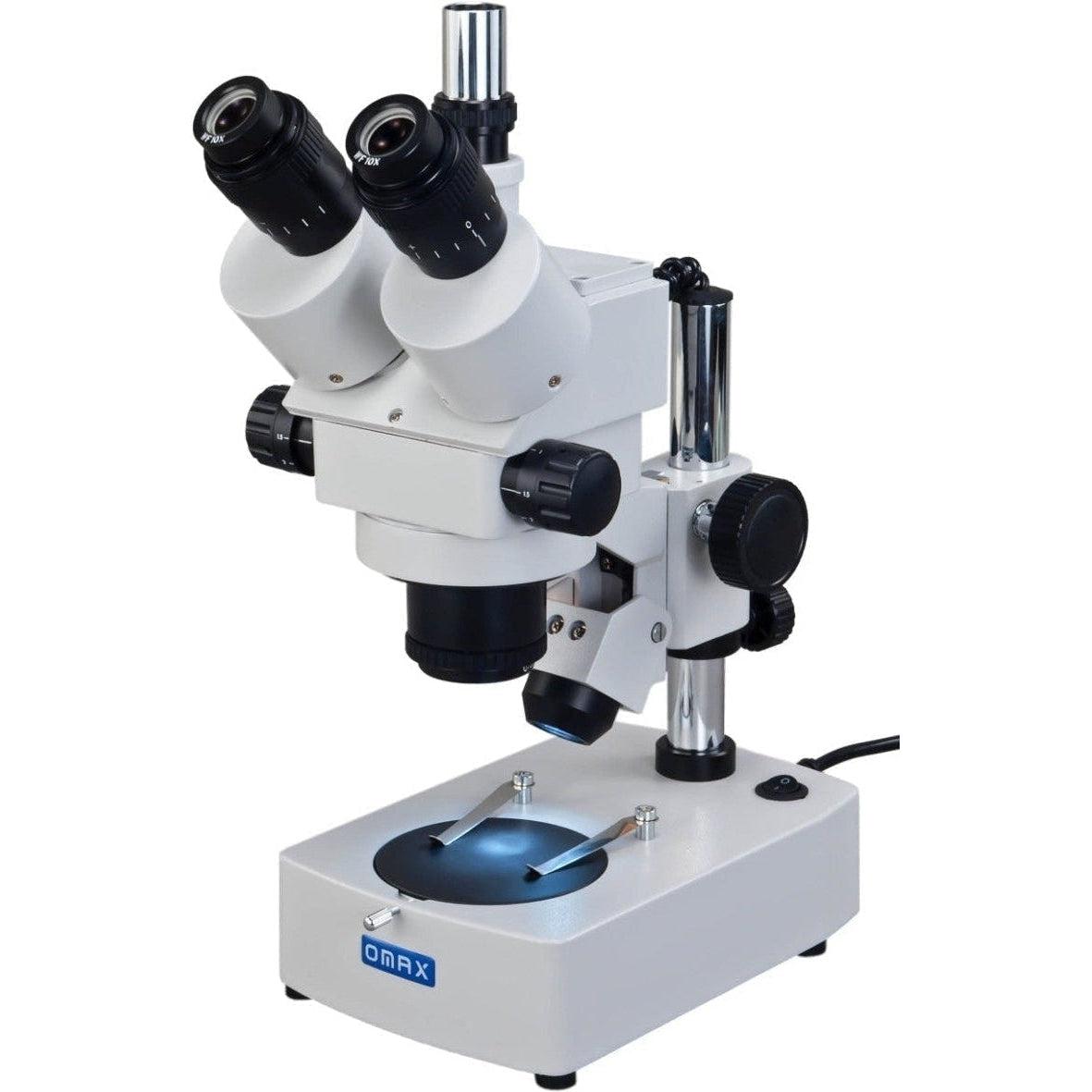

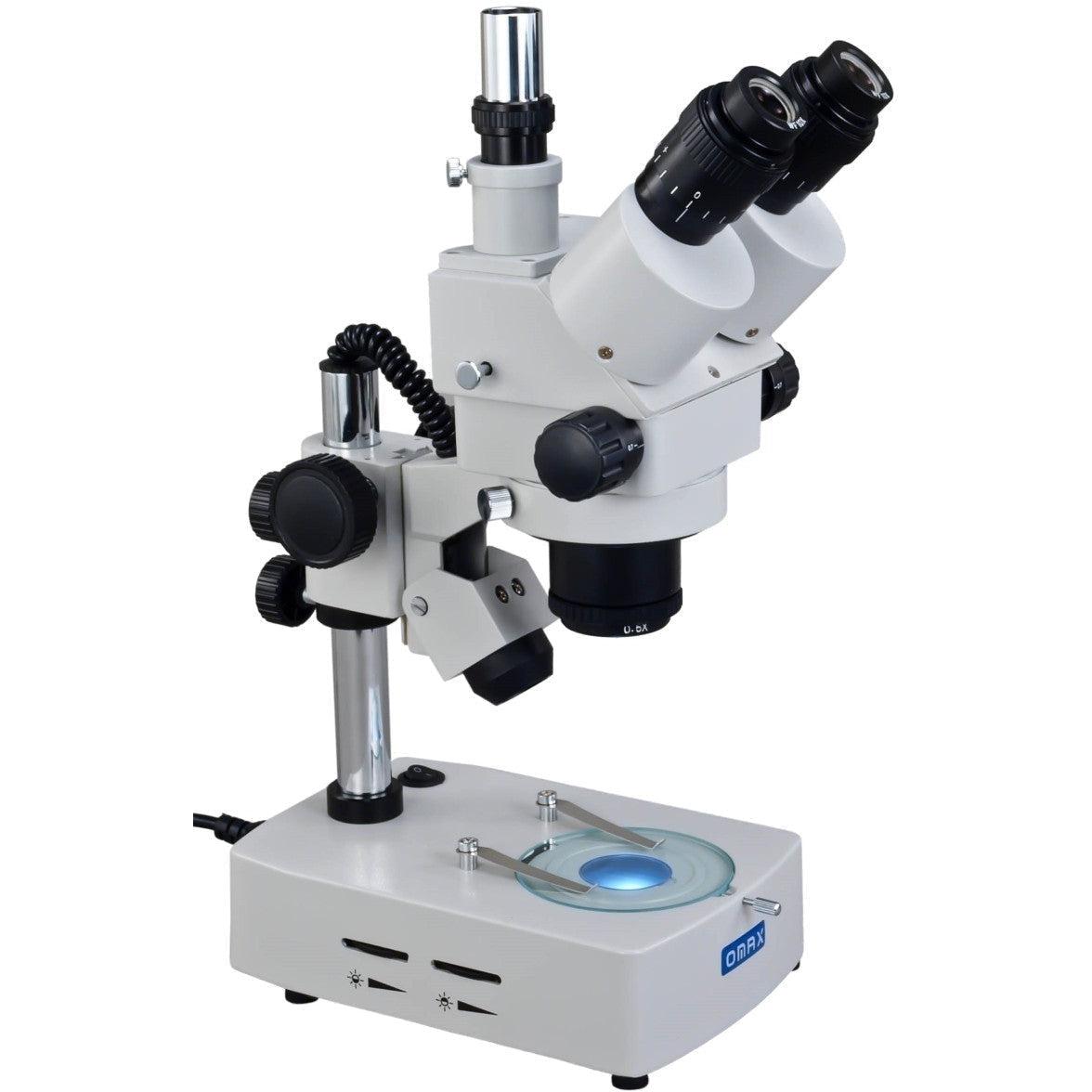

Omax 3.5x-45x Trinocular Zoom Stereo Microscope with Dual Halogen Lights

SKU: V434D

Omax 3.5x-45x Trinocular Zoom Stereo Microscope with Dual Halogen Lights - Jacobs Digital
Omax 3.5x-45x Trinocular Zoom Stereo Microscope with Dual Halogen Lights - Jacobs Digital
Omax 3.5x-45x Trinocular Zoom Stereo Microscope with Dual Halogen Lights - Jacobs Digital

Our Price

$1,762.21

$1,762.21

Green truck Usually Ships in 1-3 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

5000

176221

Shipping calculated at checkout

About this product

This is a 3.5X-45X zoom stereo trinocular microscope. This trinocular microscopy comes with super widefield optics and a versatile illumination system that provides both incident (top) and transmitted (bottom) lights. The incident light is used for the observation of three-dimensional objects due to shining down onto the objects. The transmitted light is used to inspect objects that allow light to get through them like diamonds. With the 0.5X Barlow lens, the working distance can be as long as 6-1/2" (165mm), and the field of view can be as large as 2-3/8" (60mm) in diameter. It is easy to connect a USB digital camera (sold separately) to record what you see in the microscope and save it into your computer as a picture or a video clip. The stereo microscope is useful for many applications (biological research laboratories, engravers, watchmakers, gemologists, collectors, jewellers and anyone in the electronic industry).

Features:

  • 3.5X-45X super widefield continuous stereo zoom magnification power
  • Dual halogen illuminations with individual adjustable intensity
  • 6-1/2" (165mm) long working distance and 2-3/8" (60mm) large field of view with 0.5X auxiliary objective lens
  • Adjustable interpupillary distance with diopter adjustment on both ocular tubes
  • Easy to connect a digital camera (not included) to a TV or computer

Specifications:

Model V434D
Magnification Zoom 3.5X - 45X
Viewing Head

45° inclined, 360° swiveling trinocular head,
photo tube: height adjustable,
Φ23.2 mm

Eyepiece

A pair of widefield WF10X/20

Objective Zoom, 0.7X - 4.5X, Zoom ratio 6.5:1
Barlow Lens 0.5X
Interpupillary 2-3/16" ~ 2-15/16"(55mm ~ 75mm)
Diopter Diopter ring on both eyepiece tubes ±5dp
Focus Mechanism Sturdy metal framework
Focus knobs on both side, tension adjustable, focus range: 60mm (2-3/8")
Stage Plate Glass stage plate, 3-3/4" (Φ95 mm)
White/Black plastic stage plate, 3-3/4" (Φ95 mm)
Working Distance 6-1/2" (165mm) with 0.5X barlow lens
3-3/4" (95mm) without 0.5X barlow lens
Field of View

Max 2-3/8" (60mm) with 0.5X barlow lens
Max 1-1/8" (29mm) without 0.5X barlow lens

Mounting size of auxiliary lens and ring lights

50mm female thread

Incident
Illuminator
12V/10W halogen with reflector, 90°adjustable inclined angle range, intensity adjustable
Transmitted Illuminator

12V/10W halogen, intensity adjustable

Power Supply 100V~240V, 50Hz/60Hz (US and Canada Plug)
Dimension

9 " x 6" x 17-1/2" (23cm x 16cm x 44cm)

Net Weight 12 lbs 9 oz ( 5.7 kg)
Shipping Package 16 lbs (7 kg)

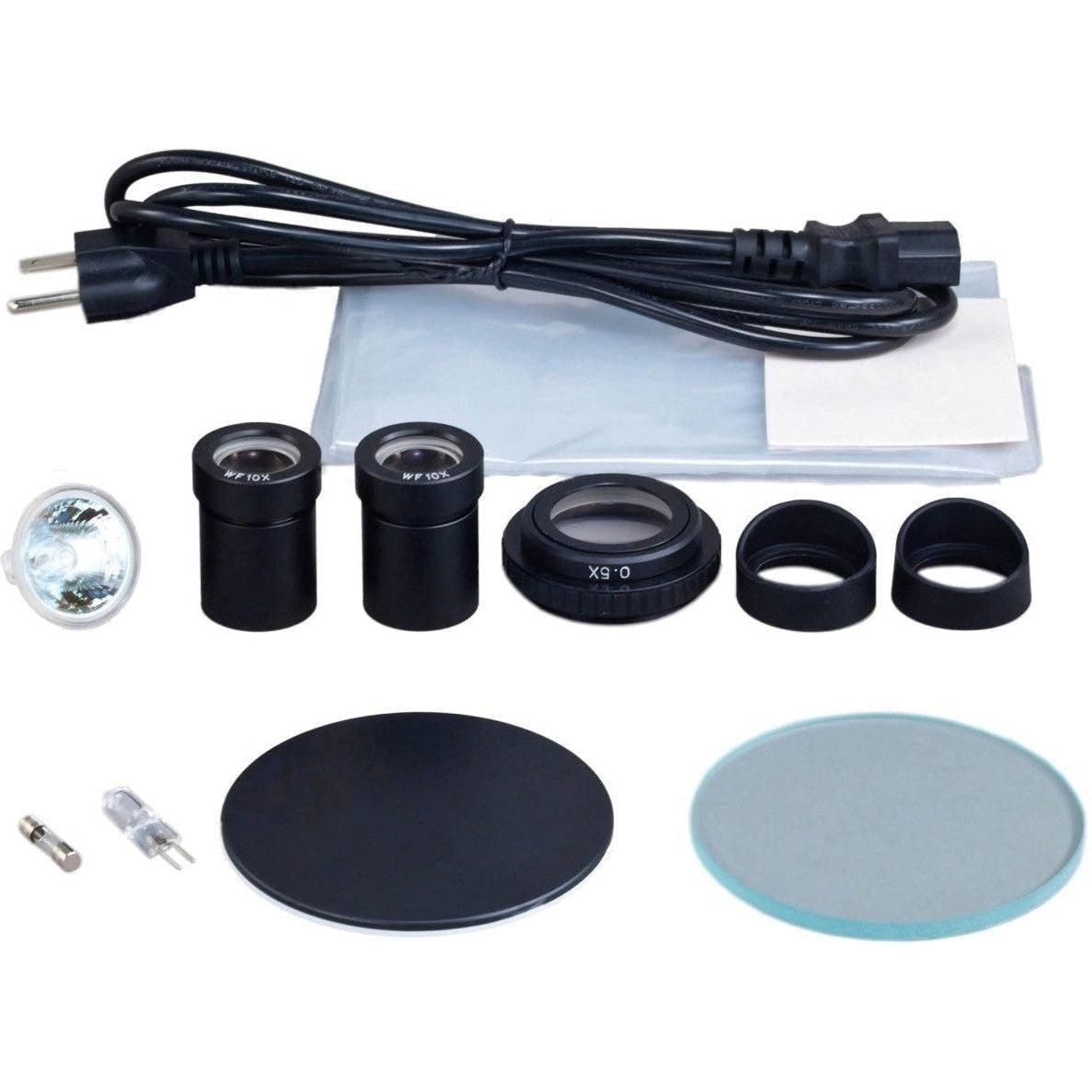

Packing List:

  • Trinocular stereo microscope
  • A pair of eyepieces WF10X
  • 0.5X auxiliary objective lens
  • Glass stage plate
  • Black/white plastic stage plate
  • Rubber eyeshield
  • A pack of lens cleaning paper
  • Power cord
  • Dust cover
  • Extra halogen bulb 12V/10W
  • Extra halogen bulb 12V/10W with reflector
  • Extra fuse
