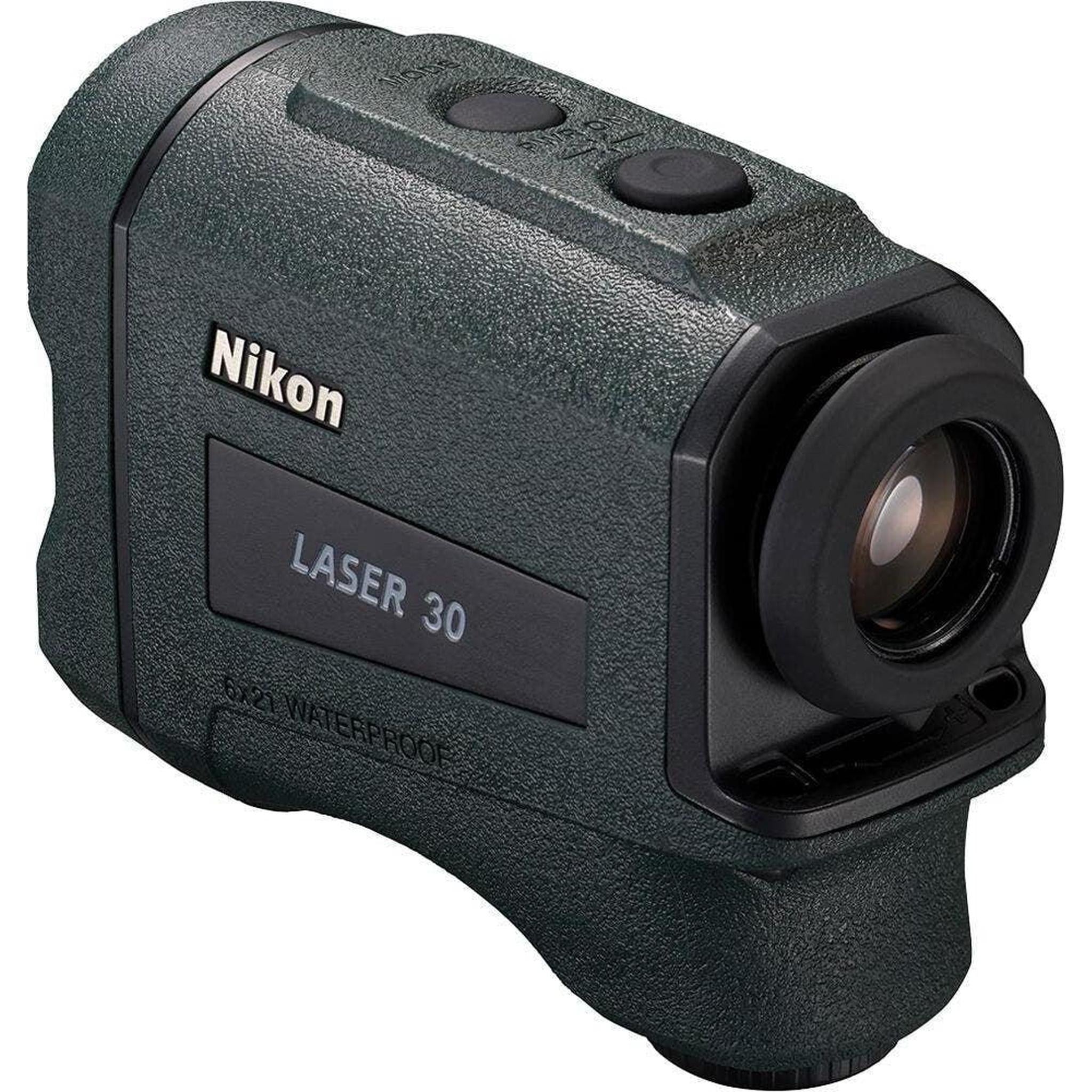

Nikon Laser 30 Rangefinder

SKU: BKA156YA

Nikon Laser 30 Rangefinder - Jacobs Digital

Our Price

$643.49

$643.49


Loading

440

64349

Shipping calculated at checkout

When will I receive it?

About this product

  • Single or continuous measurement
  • 6x monocular with multilayer coating
  • Four measurement display modes
  • Measurement range: 7.3-1,460m / 8-1,600 yd.
  • Quick Hyper Read measurement
  • Target Priority Switch System
  • Wide field of view
  • Large ocular for easy viewing
  • Dioptre adjustment function
  • Long eye relief design
Measurement Range

Distance: 8-1,600 yd. (7.3-1,460m)
Angle: ±89º

Maximum Measurement Distance (Tree)

1,250 yd. (1,140m)
Under Nikon's measurement conditions and reference values

Maximum Measurement Distance (Deer)

1,100 yd. (1,000m)
Under Nikon's measurement conditions and reference values

Increment Reading

Actual Distance: every 0.1m/yd.
Horizontal Distance: every 0.1m/yd.
Height (upper): every 1m/yd. (100m/yd. and over)
Angle: every 0.1°

Accuracy (Actual Distance)

±0.50m/yd. (shorter than 700m/yd.)
±1.00m/yd. (700m/yd. and over, shorter than 1,000m/yd.)
±1.50m/yd. (1,000m/yd. and over)
Under Nikon’s measurement conditions

Magnification

6x

Effective Objective Diameter

21mm

Angular Field of View (Apparent)

7.5°

Exit Pupil

3.5mm

Eye Relief

18.0mm

Diopter Adjustment

+/- 4°

Power Source

1 CR2 Lithium Battery (DC 3V)
Automatic power shut-off (after approx. 8 sec. unoperated)

Size (Length x Width x Height)

96mm x 42mm x 74mm

Weight (Without Batteries) 175g
Operating Temperature

-10 to +50°C (14 to 122°F)

Operating Humidity

80% or less (without dew condensation)

Angle Compensation

Yes

Waterproof

Yes
Waterproof (up to 1m/3.3 ft. for 10 minutes)
Fogproof
Battery chamber is rainproof - JIS/IEC protection class 4 (IPX4) equivalent
Under Nikon's testing conditions

Battery Life

Approx. 8,500 actuations (at approx. 20°C [68°F])
This figure may differ according to conditions such as temperature and other factors. Use only as a guide.

Laser Classification

IEC60825-1: Class 1M/Laser Product
FDA/21 CFR Part 1040.10: Class I Laser Product

Electromagnetic Compatibility

FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020, ICES-003

Environment

RoHS, WEEE

Wavelength (nm)

905

Pulse Duration (ns)

9.7

Output (W)

33.8

Beam Divergence (mrad)

Vertical: 0.25
Horizontal: 1.8

Use

Outdoor, Forestry
