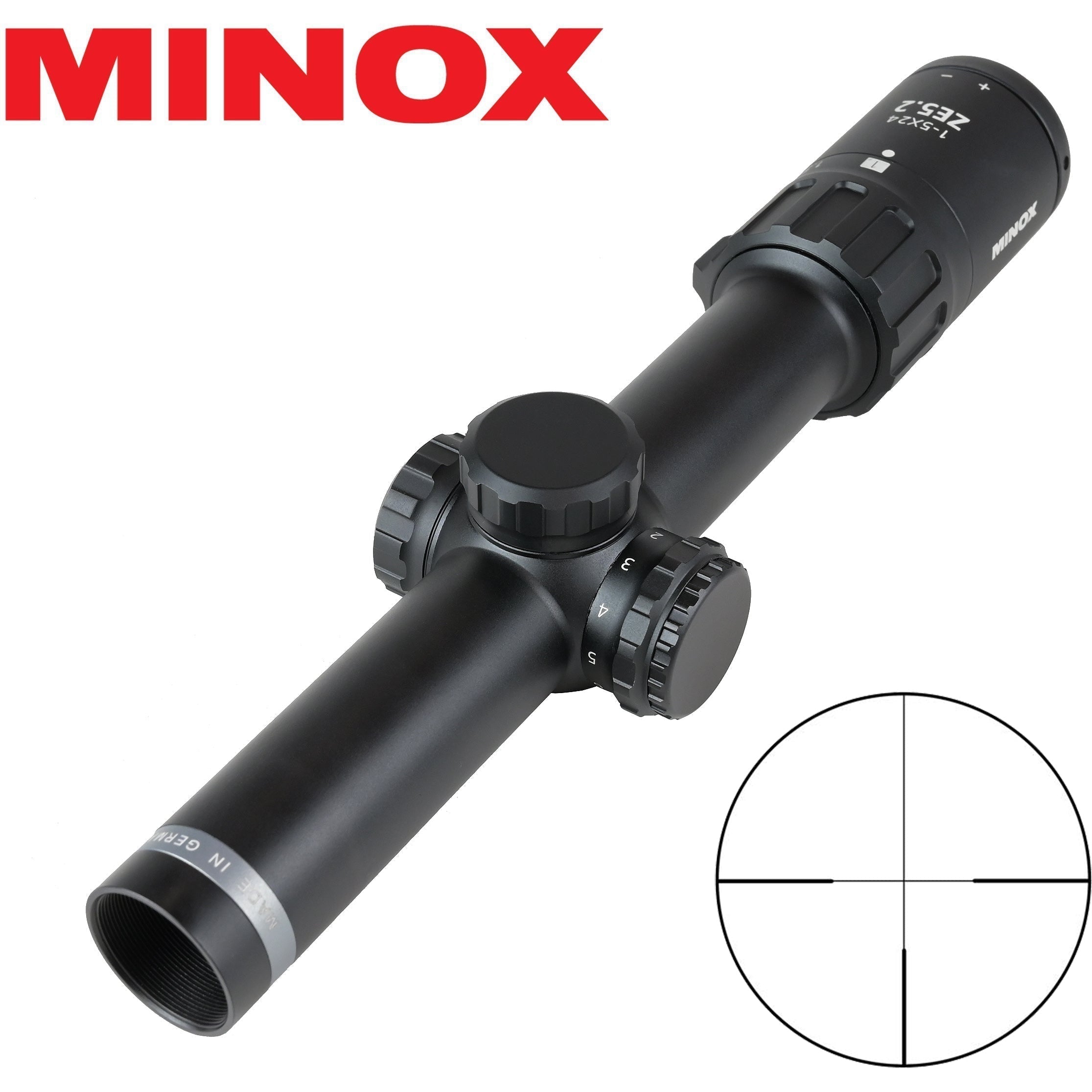

Minox ZE5.2 1-5x24 30mm #4 German Illuminated Reticle

SKU: M80107662

Minox ZE5.2 1-5x24 30mm #4 German Illuminated Reticle - Jacobs Digital
Minox ZE5.2 1-5x24 30mm #4 German Illuminated Reticle - Jacobs Digital
Minox ZE5.2 1-5x24 30mm #4 German Illuminated Reticle - Jacobs Digital
Minox ZE5.2 1-5x24 30mm #4 German Illuminated Reticle - Jacobs Digital

Our Price

$1,934.10

$1,934.10

Green truck Usually Ships in 4-6 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

1000

193410

Shipping calculated at checkout

When will I receive it?

About this product

Four models featuring a 30 mm tube and 5x magnification, with a fine, dimmable glass fiber reticle: this is the new MINOX ZE5.2 riflescope line. The ZE5.2 series provides maximum flexibility and precision for short and long-distance shooting thanks to MINOX’s Fast Target Acquisition (FTA) system that provides a greatly improved ease of view with its enlarged eyepiece. Since with the increased size of the exit pupil the eye remains completely relaxed, shooters can take advantage of a large field of view and acquire the target quickly and easily. Moreover, the newly developed optical system with special hi-tech glass provides more resolution and contrast for an excellent image quality.

The ZE5.2 series riflescopes take advantage of an innovative glass fiber reticle in the second image plane with a homogeneously luminous circular dot that can be adjusted to any hunting situation during the day or at night. The improved LED technology allows for an optimal light transmission with almost no loss into the fine glass fiber. The FTA position sensor ensures an automatic shutdown of the reticle and the automatic timer deactivates the reticle illumination after 2 hours.

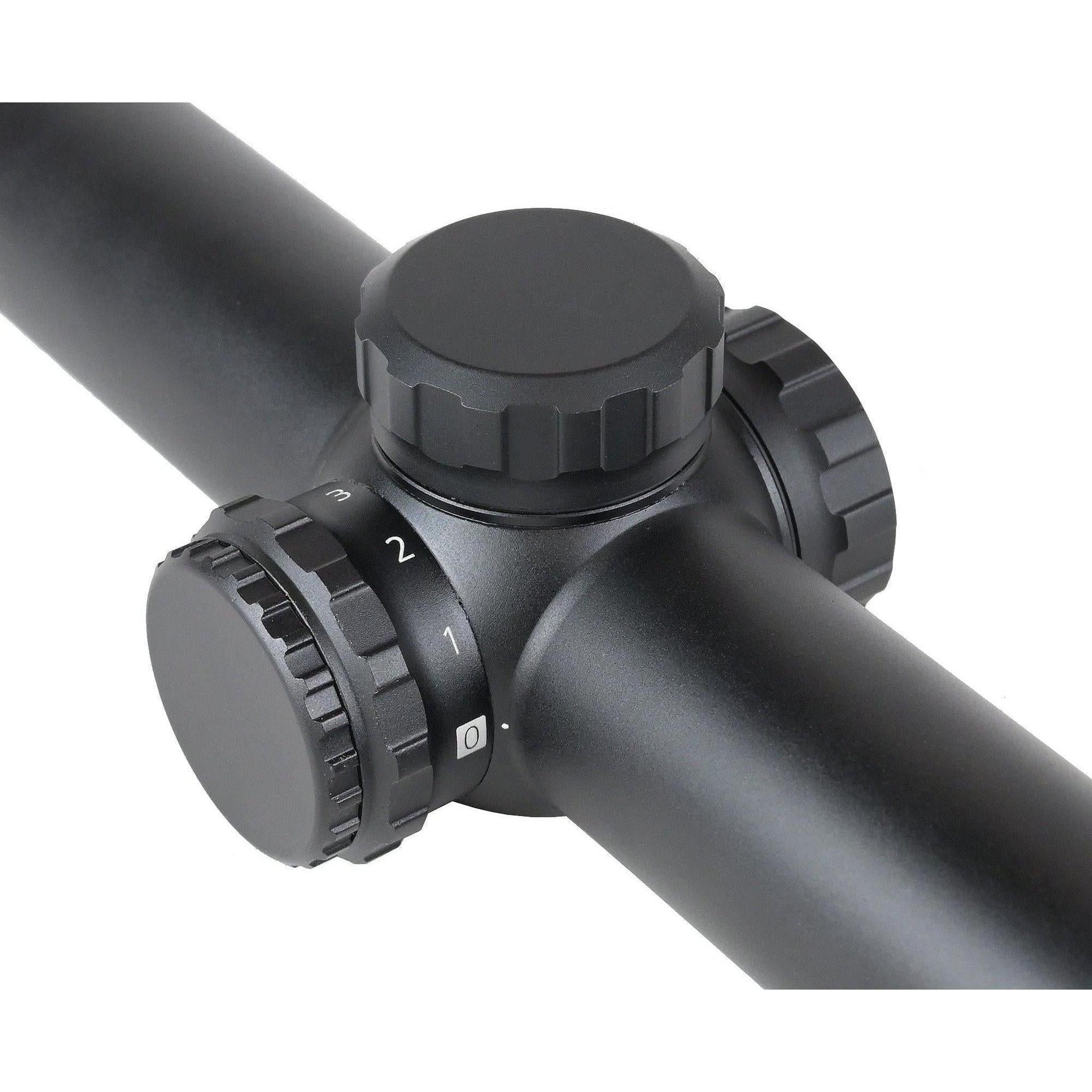

The ZE5.2 riflescopes have extra low-profile adjustment turrets. They are watertight and purged with Argon gas to prevent internal fogging. They are also equipped with a neoprene protective cover and an Allen key to adjust the reticle.

After registering, the extended MINOX Comfort Service 30 year warranty applies to all ZE5.2 models.

Specifications:

  • Max./min. power: 1-5x
  • Objective diameter: 24 mm
  • Exit pupil max./min.: 11,4-4,9 mm
  • Exit pupil max./min.: 37,1-8,2 mm
  • Eye relief: 100 mm
  • Diopter adjustment (-/+): - 3/+2,5
  • Elevation and windage adjustment per click: 1cm/100m MOA
  • Reticle adjustment range: +- 100cm/100m
  • Parallax adjustment: 100 m
  • Power supply for reticle illumination: CR 2032
  • Tube diameter: 30 mm
  • Length: 285 mm
  • Weight: 480 g
