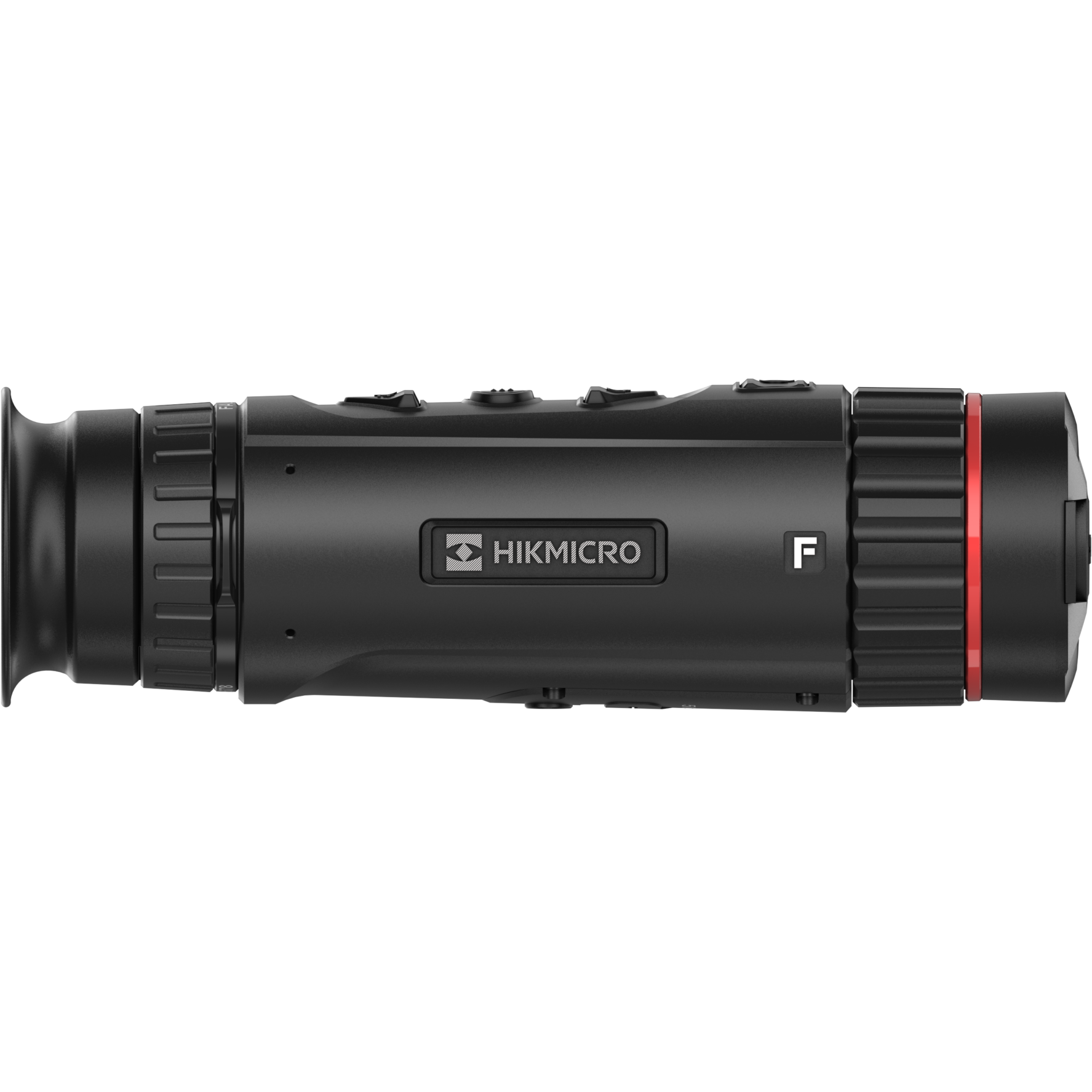

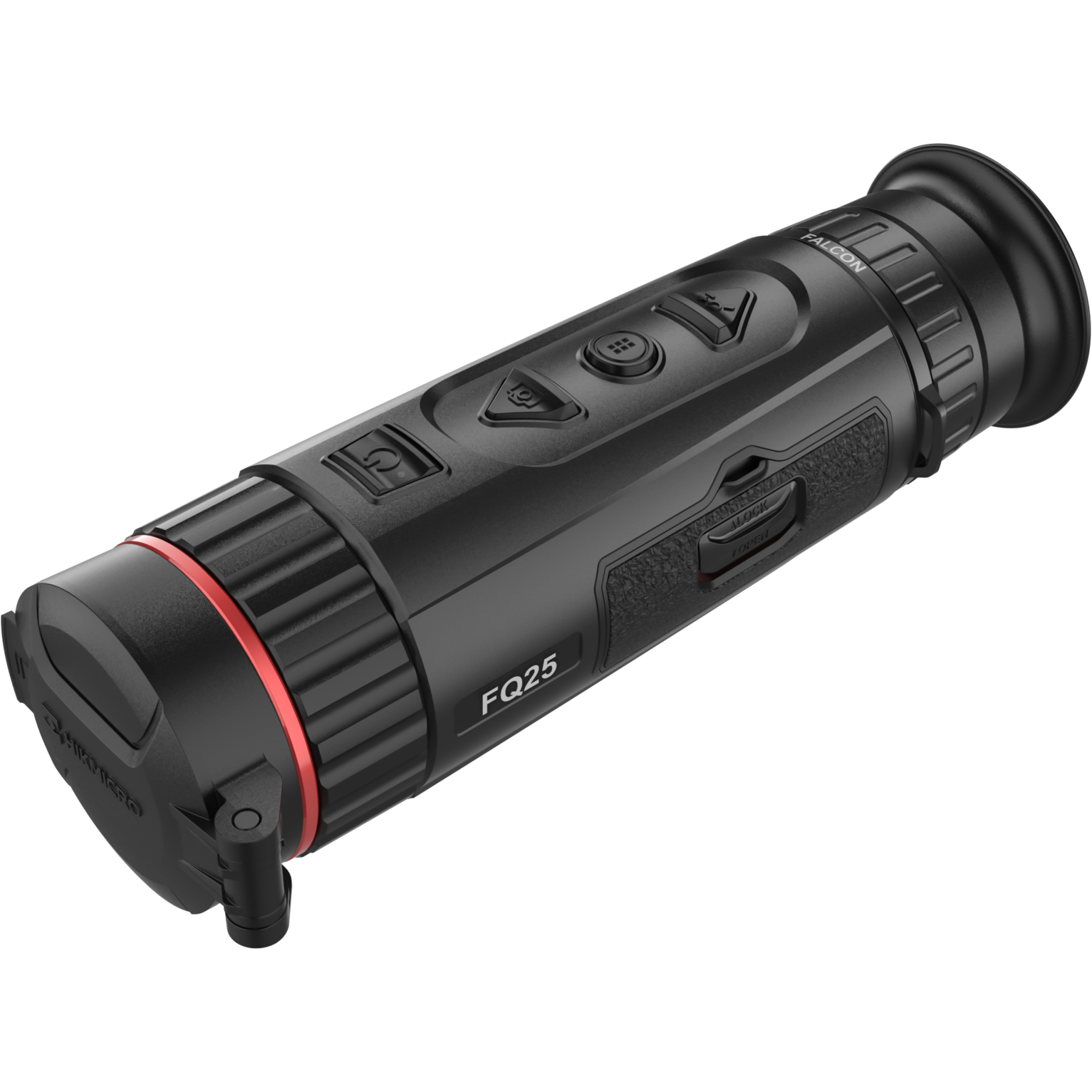

HIKMICRO FQ25 Falcon 25mm 384 × 288 Thermal Imager

SKU: FQ25

HIKMICRO FQ25 Falcon 25mm 384 × 288 Thermal Imager - Jacobs Digital
HIKMICRO FQ25 Falcon 25mm 384 × 288 Thermal Imager - Jacobs Digital
HIKMICRO FQ25 Falcon 25mm 384 × 288 Thermal Imager - Jacobs Digital

Our Price

$3,999.00

$3,999.00

Green truck Usually ships in 1-2 days An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

5000

399900

Shipping Quote

When will I receive it?

About this product

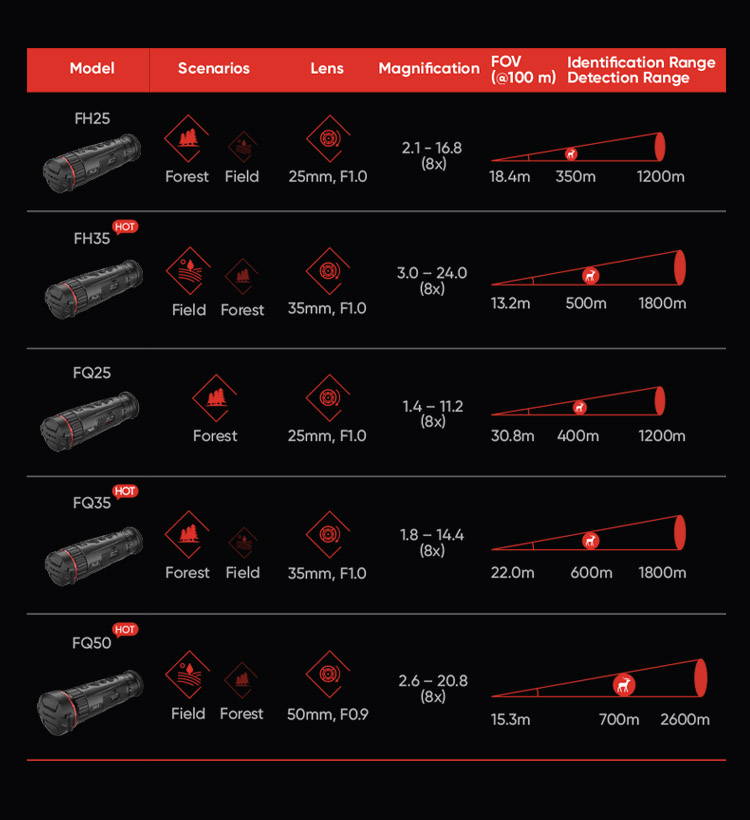

A Super Large FOV of 30.8m @100m

Ultra Clear Image. Impressive Detail Recognition
The higher sensitivity in combination with high definition sensor and larger aperture optics provides the best quality, most detailed&high-contrast, informative image in all weather conditions.

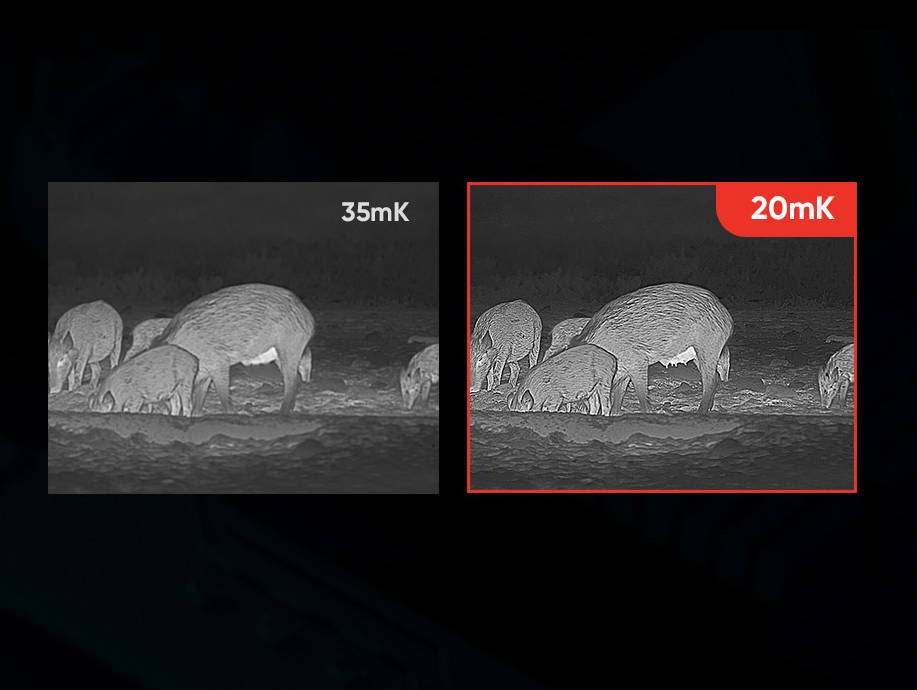

1. Extremely high thermal sensitivity, NETD<20mK
High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves sensitivity. The smallest details of objects and backgrounds can be identified clearly.
2. High definition thermal detector, up to 640x512 @12μm
Equipped with 12μm high-end thermal detector and up to 640x512 pixel resolution offer an excellent temperature resolution to ensure the thermal image significantly sharp and richly contrasted.
3. Super large aperture f/0.9 lens, 19% improvement
With a high-performance aspheric germanium lens, the super large aperture f/0.9 offers better temperature radiation capturing capability. Compared with the f/1.0 aperture, the capturing of temperature radiation level is increased by 19%. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.

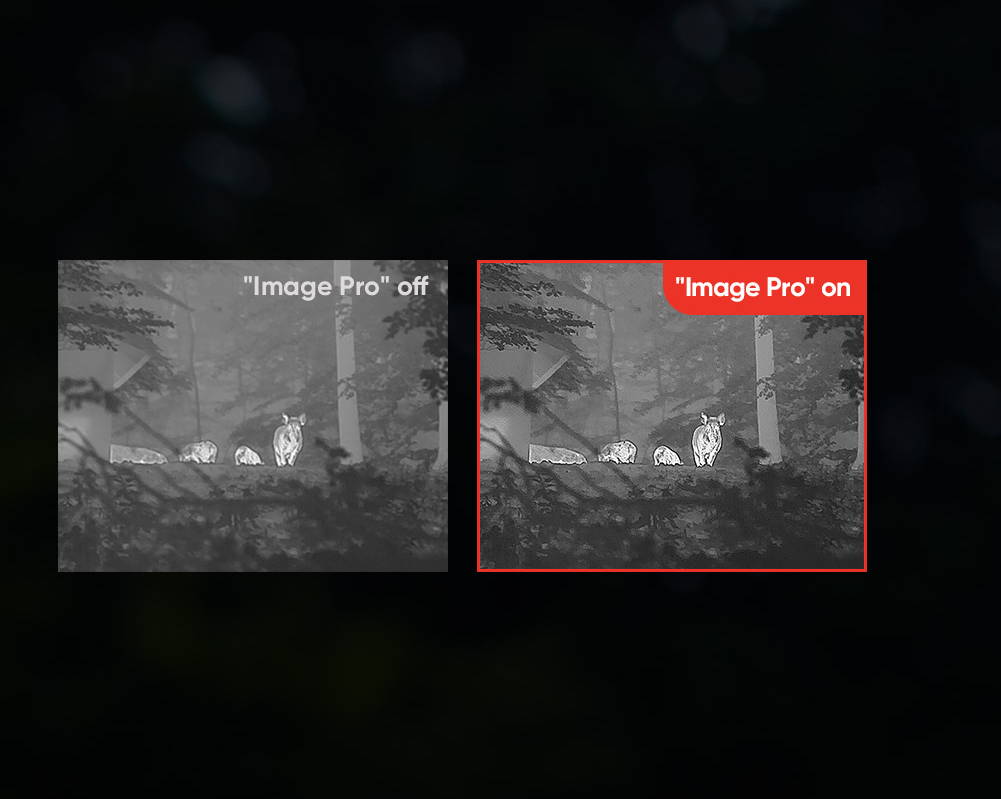

4. Image Pro, enhanced self-developed image processing algorithm
Image Pro, HIKMICRO’s self-developed image processing algorithm, ensures the maximum digital image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.


FH25
FH25

VOx Uncooled Focal Plane Arrays
384x288
50Hz
12μm
8μm to 14μm
Less than 20 mK (@25°C),F#=1.0
25mm, F1.0
1200m
Focus Ring
10.5°×7.9°/18.4m×13.8m
Specification Details
Brand HIKMICRO
Model FQ25 Falcon 25mm
SKU FQ25
Detector Type Uncooled focal plane array
Resolution 384 × 288 pixels
Spectral Range 8-14 µm
NETD (Thermal Sensitivity) < 35 mK
Image Frequency 50 Hz
Field of View (FOV) 14.9° x 11.2°
Minimum Focus Distance 1 m (3.28 ft)
Lens (Focal Length) 25 mm
Display Type OLED
Display Size 0.39 inches
Display Resolution 1024 x 768 pixels
Color Palettes Black Hot, White Hot, Red Hot, Fusion
Digital Zoom 2x, 4x, 8x
Temperature Range -20°C to 55°C (-4°F to 131°F)
Accuracy ±1°C or ±1% of the reading
Storage Media Internal memory, up to 16 GB
Image Format JPG
Video Format MP4
Interfaces USB Type-C, Wi-Fi
Battery Type Rechargeable lithium-ion battery
Battery Life Up to 7 hours of continuous operation
Charging Time Approximately 3.5 hours
Dimensions 186 x 73 x 62 mm (7.32 x 2.87 x 2.44 in)
Weight 500 g (1.1 lbs)
Ingress Protection IP67
Operating Temperature -30°C to 60°C (-22°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Emissivity Correction Yes
Adjustable Settings Yes, for brightness and contrast
Auto/Manual Hot/Cold Spot Tracking Yes
Drop Test Height 2 meters (6.56 ft)
