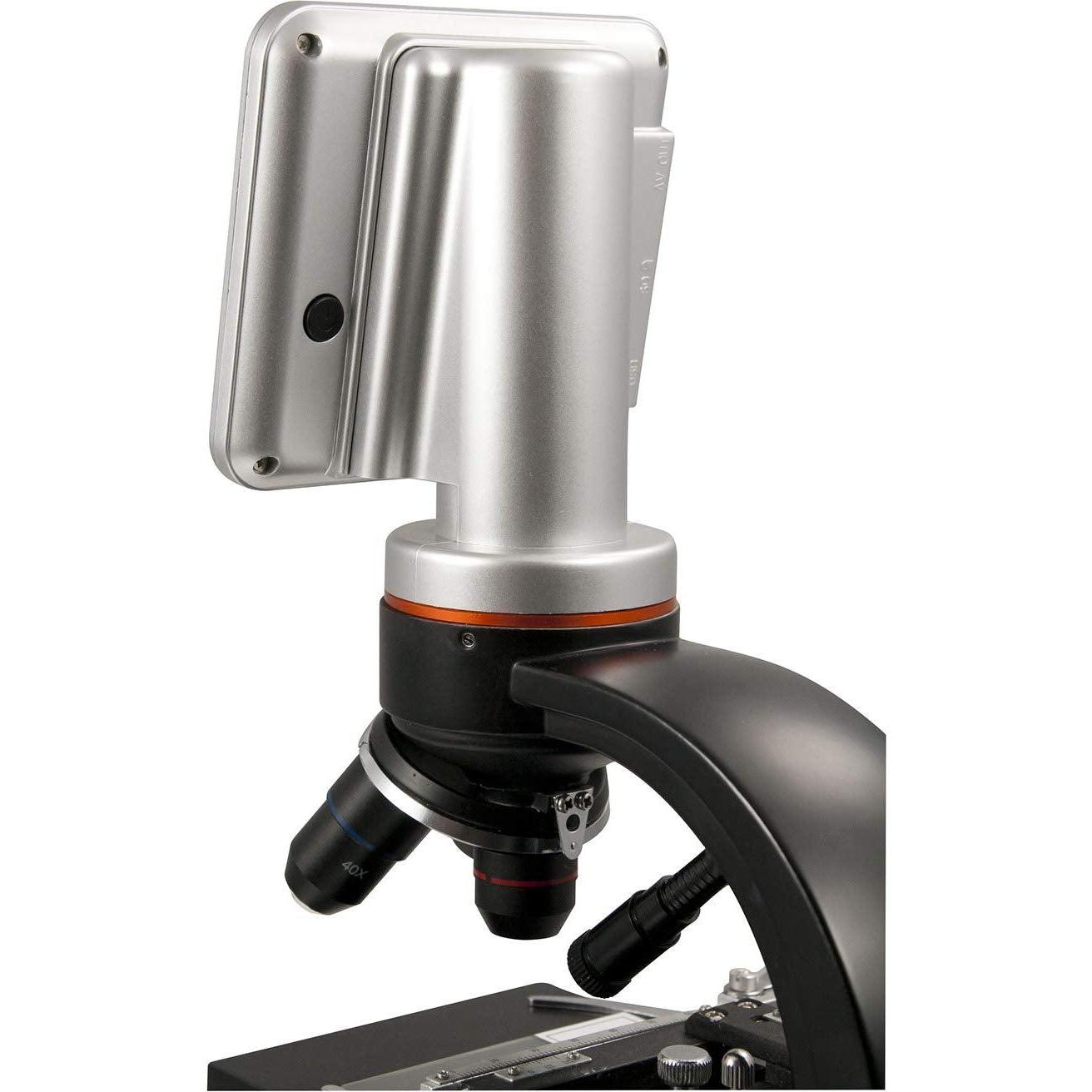

Celestron LCD Digital II Microscope

SKU: 44341

Celestron LCD Digital II Microscope - Jacobs Digital
Celestron LCD Digital II Microscope - Jacobs Digital
Celestron LCD Digital II Microscope - Jacobs Digital

Our Price

$639.20

$639.20

Green truck Usually ships in 4-8 weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

3450

63920

Shipping Quote

When will I receive it?

About this product

OVERVIEW:

  • Professional digital biological microscope
  • Full color 3.5" TFT LCD screen with onboard software
  • Built-in 5MP digital camera captures high-resolution images and 30fps SD video of your specimen
  • Fully adjustable mechanical stage for easy slide movement
  • 180-degree rotating head for easy sharing of images
  • Rotating objective lens turret 3 lens powers: 4x, 10x, and 40x
  • Camera sensor acts as 10x eyepiece lens, yielding 40x, 100x, and 400x powers
  • 4x digital zoom for magnification up to 1600x
  • Measuring reticle for comparing specimen sizes
  • 1 GB SD card included so you can save up to 620 high-resolution images
  • TV output for display on large monitors for classroom or lab environment
  • Included accessories: 1 GB SD card, dust cover, rugged canvas carrying case with shoulder strap, 5 prepared slides, AV Output Cable, 4 plug international AC adapter

The LCD Digital Microscope II from Celestron combines a three-objective microscope with top/bottom LED illumination and a 5MP digital camera with colour touchscreen display. This instrument is well-suited for middle school and high school classrooms thanks to the rotating 3.5" display, video output, and broad zoom range. The included SD card enables observers to capture still images and record videos of their specimen, then transfer them to a computer or mobile device. Achromatic objectives equip the LCD Digital Microscope II with an optical system that transmits enhanced contrast and minimal image distortion. The objective turret features 4x, 10x, and 40x color-coded objectives capable of up to 160x, 400x, and 1600x magnification using digital zoom. This microscope also provides variable-intensity top and bottom illumination, both controlled by a base-mounted dimmer wheel. Complementing the bottom LED light source, a condenser lens and disc diaphragm with color filters provide several options for specimen illumination. To enable fine control of the specimen, the LCD Digital Microscope II is configured with a mechanical stage, making this optical-electrical instrument ready for the lab as well as the classroom.




Specifications:




Microscope Type Compound
Eyepiece 10.0x (camera lens)
Nosepiece 3-hole
Objective(s) 4.0x, 10.0x, 40.0x
Focuser Single motion
Light Source 5V LED top/bottom with dimmer
Specimen Stage 3.5 x 3.5" (8.8 x 8.8 cm) mechanical stage with metal clips
Lens (Condenser) 0.65NA
Diaphragm 6-position disc with color filters (red, blue, green) and (6mm, 3mm, 1mm) apertures
Power Supply 120 - 240V AC
Height 13 x 6.7 x 5.5" (33 x 17 x 14 cm)
Weight 56 oz (1.6 kg)


Comes with:

  • 1GB SD Card
  • 5 x Prepared Slides
  • Canvas Carrying Case
  • USB Cable
  • AV Output Cable
  • Dust Cover
  • Universal Input AC Adapter
