SkyWatcher Esprit 150ED on StrainWave 150i Mount Refractor Telescope

About this product

• 1 x Wave 150i Strain Wave Mount
• 1 x Extension Tube for Wave 100i & 150i for Carbon Fibre Tripod
• 1 x Carbon Fibre Tripod for Wave 100i & 150i

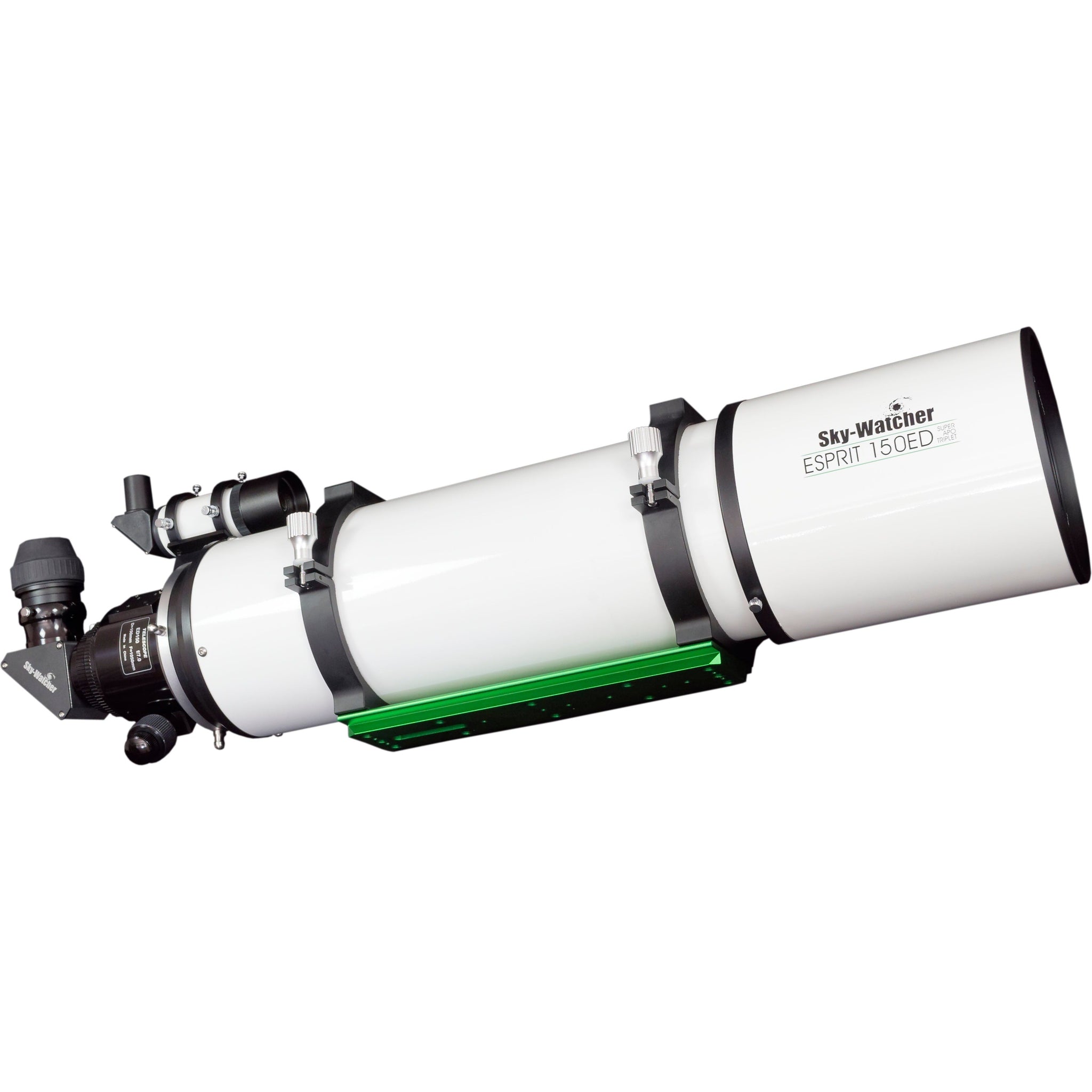

• 1 x 150/1050 Esprit 150ED Triplet APO OTA

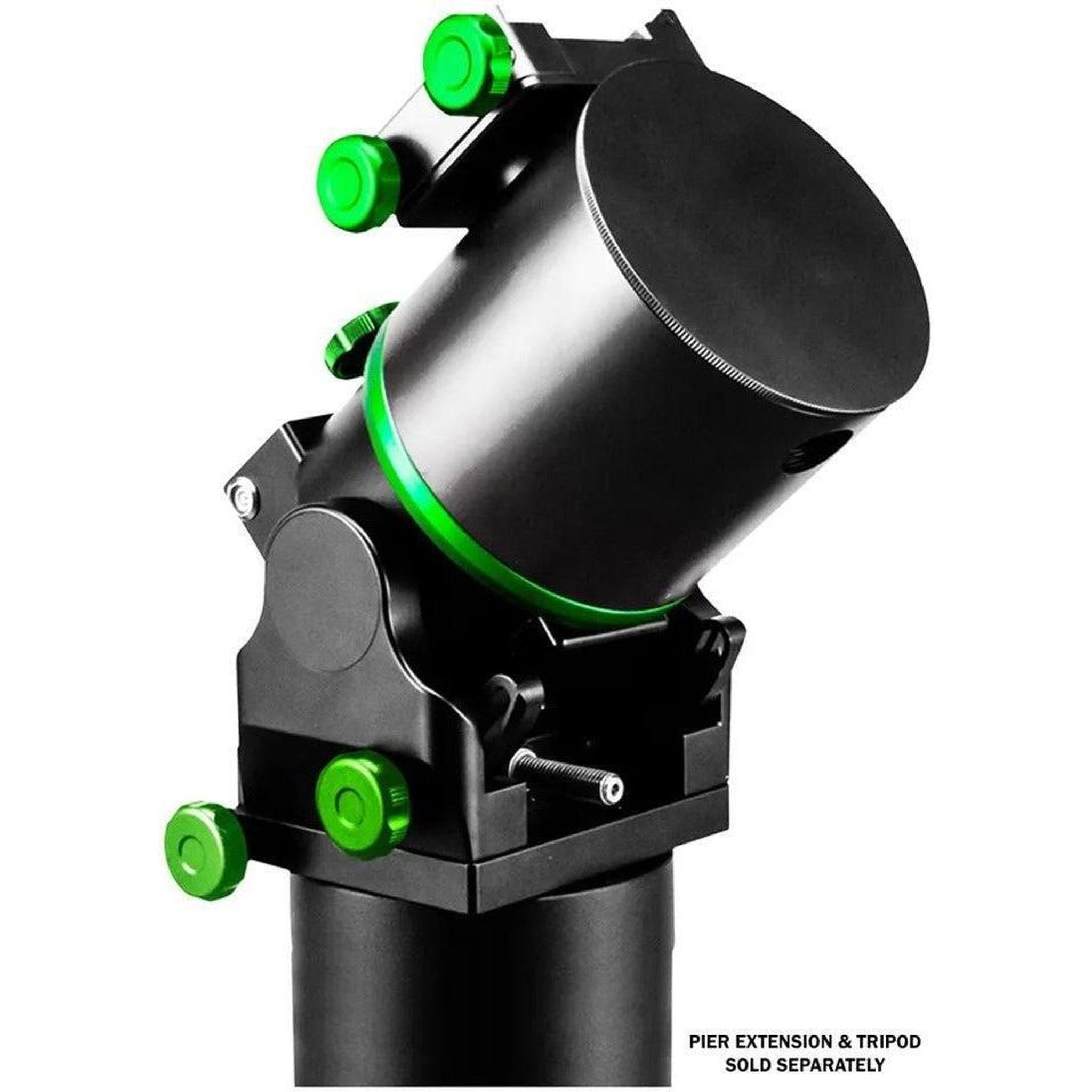

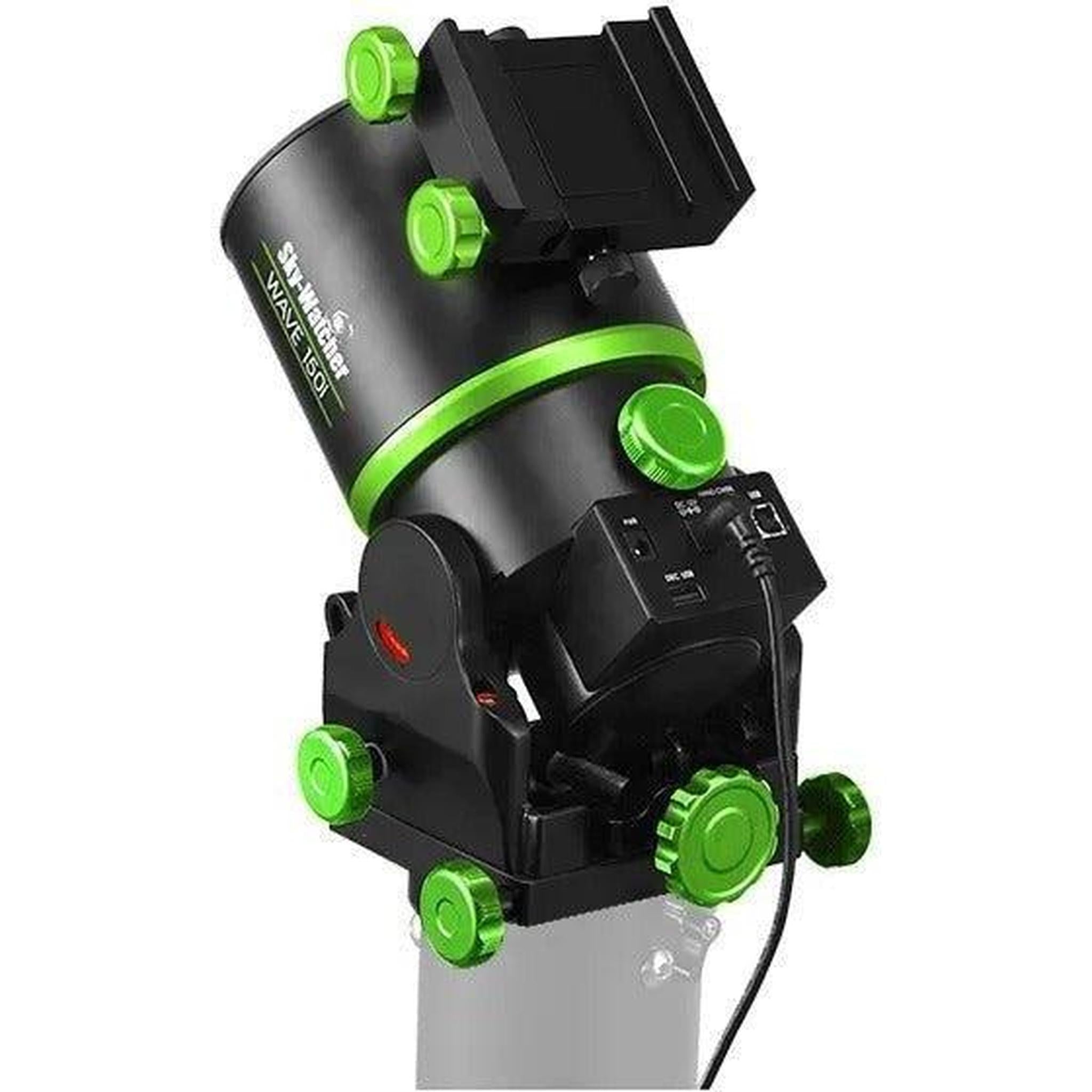

The Sky-Watcher Wave 150i is built based on a strain wave design, also known as harmonic gearing. This drive gear design harbours a number of benefits including highly precise tracking with minimal backlash for capturing long exposure images, and a compact design with a remarkable payload to weight ratio for the use of various equipment while still being convenient for transportation.

Wave 150i Mount Features:

• Working Mode: EQ or AZ
• Mount weight: 5.8kg
• Payload without Counterweight: 15kg
• Payload with Counterweight: 25kg
• Transmission Mode: Stepper motor + belt drive and harmonic reducer
• RA Harmonic spec: 17-100
• DEC Harmonic spec: 14-100
• Total transmission ratio: 300:1
• Latitude adjustment range: continuously adjustable from 0 to 90 degrees
• RA has a clutch-locking function, easy to adjust balance when installing a counterweight
• Wifi and Bluetooth function
• Working power: 12v DC
• Standby current: 0.4
• Go-to current: 2A
• Highest rate: 2400x (10 degrees/s)
• RA has power-off braking function
• RA and DEC home limits position function
• Cable management function
• Red LED lighting for latitude scales and bubble level

Benefits of Strainwave Designs
The Sky-Watcher 150i is modelled upon strain wave design, commonly referred to as harmonic. These type of mount mechanics come packed with a number of advantages for astrophotography, including very accurate precision tracking which is pertinent for longer exposure imaging, low backlash and smooth motion for stable tracking, compact designs for easier transport and a relatively high payload to weight ratio to accommodate a much wider range of equipment.

15kg Payload Capacity
The Sky-Watcher Wave 150i weighs only 5.8kg, yet it can withstand a native payload capacity of 15kg without counterweights, but up to 25kg with a counterweight.

Transmission Ratio of 300:1 Ensures Smooth Slewing and Tracking
The Wave 150i has a transmission ratio of 300:1, which represents a relatively high level of tracking and slewing accuracy since motor torque and rotation is divided into smaller increments, lessening any impact of jolts between rotations that could be apparent the longer exposures become. The maximum slew rate of the 150i is 2400x (10° per second).

Works at any Latitude
The Sky-Watcher Wave 150i has a working latitude range of 0° to 90°, meaning it can be operated successfully at any latitude and doesn’t suffer from limitations on more traditional gear mounts with counterweight obstruction and zenith out of range.

Supports Multiple Tracking
The Wave 150i supports sidereal, lunar and solar tracking. This means it can be reliably used for night-time astrophotography, moon capture and stunning solar imaging!

SynScan Features:

• Database with 42,900+ objects
• Messier, Caldwell, NGC, IC & SAO catalogues, Named Stars, Double Stars, Variable Stars, Named Stars
• One, Two and Three Stars or Brightest Star Alignment
• Autoguiding feature for astrophotography
• Pointing Accuracy Enhancement feature (PAE)
• Permanent Periodic Error Correction (PPEC)
• Unknown Object Identification feature
• Pointing accuracy up to 10 arc min
• Tracking rates: Sidereal, Lunar, Solar
• Slewing speeds: 1x, 2x, 16x, 32x, 64x, 128x, 400x, 500x, 600x, 800x (3.4°/sec)

The exceptional SynScan Go-To system allows full control of both R.A. and Dec. axes with 9 slew speeds and 5 arcminute pointing precision, allowing you to quickly and accurately locate objects across the night sky. The Go-To system can automatically slew the telescope on command toward planets, stars, nebulae, galaxies, clusters and much more. The SynScan has 42,900 memorised celestial objects for an amazing journey in the night sky. The Deep Sky Tour function suggests a list of the most interesting deep sky objects currently visible, so even the novice astronomer can easily observe faint objects at the touch of a button.
