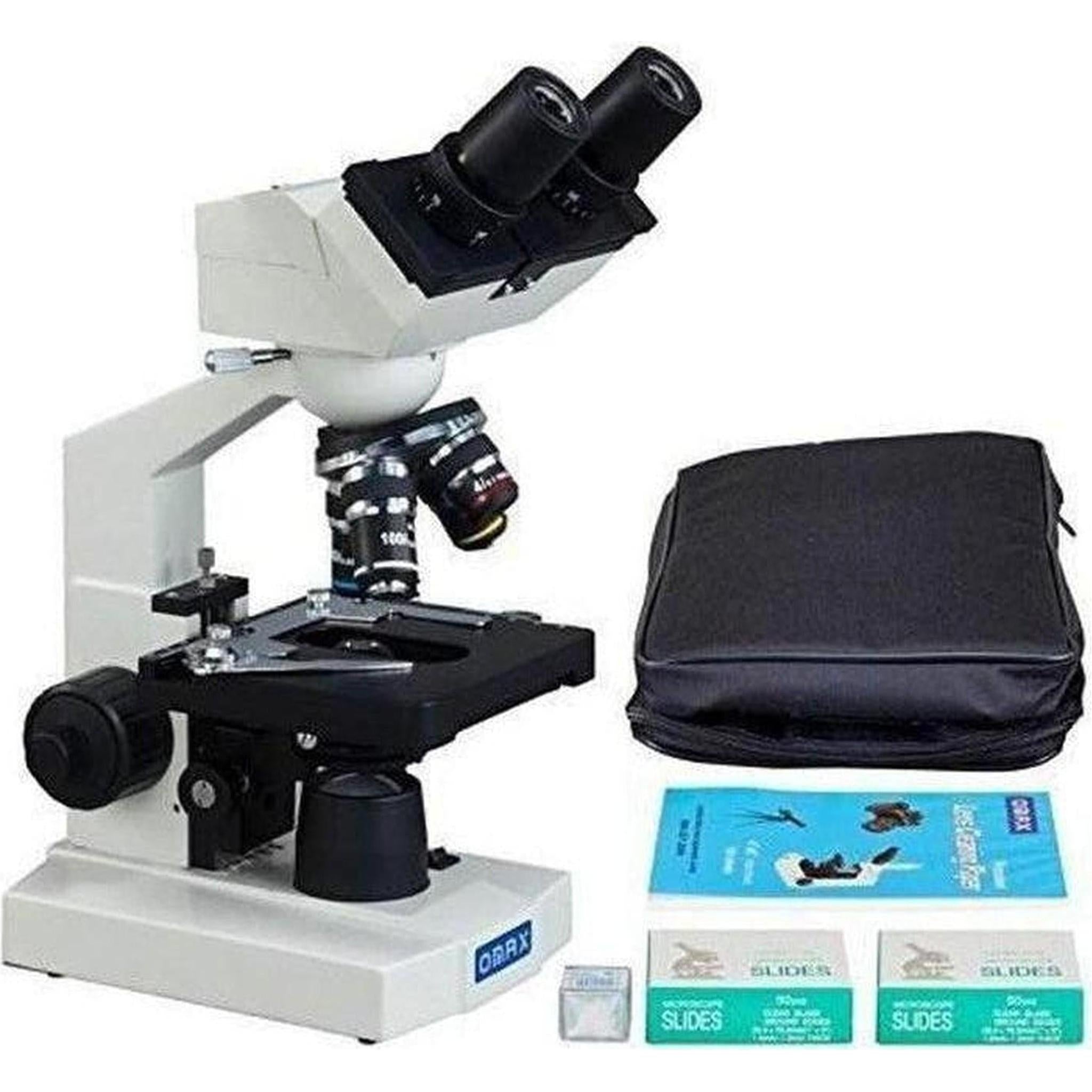

Omax 40x-2000x Compound Microscope w/ 1.3mp Camera and Accessories

SKU: MD82ES10-A188V-SCP100

Omax 40x-2000x Compound Microscope w/ 1.3mp Camera and Accessories - Jacobs Digital
Omax 40x-2000x Compound Microscope w/ 1.3mp Camera and Accessories - Jacobs Digital

Our Price

$1,285.00

$1,285.00

Green truck Usually Ships in 1-3 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

6000

128500

Shipping Quote

When will I receive it?

About this product

This microscope is both a digital and analogue in it's use. It has a built-in USB camera as well as an optical binocular head for flexibility. This is a great high-quality entry-level model and comes included with a case, slides and coverslips to get started right away.

Link to Manual

Features:

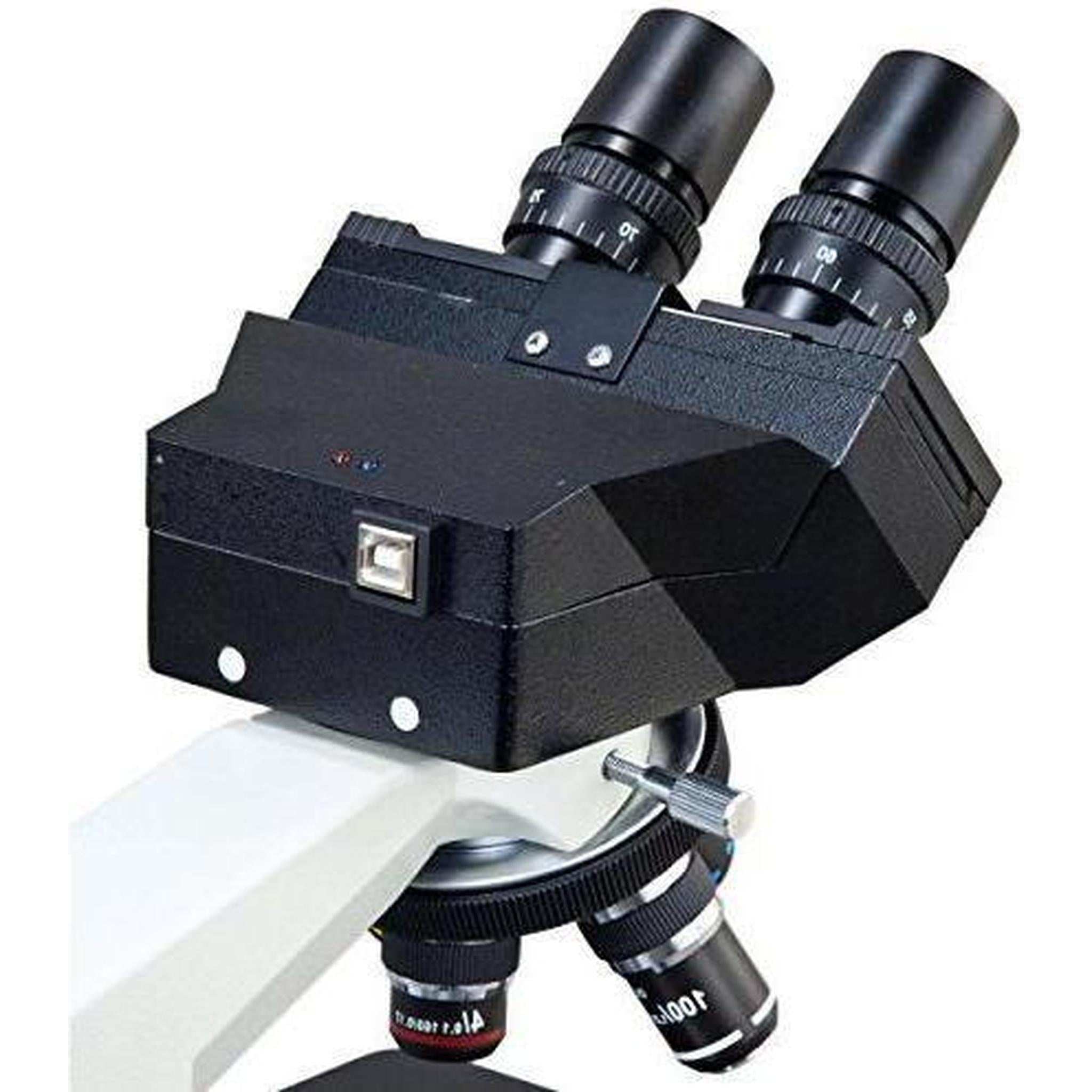

  • Built-in 1280x1024 pixels (1.3MP) USB digital camera with advanced software applications
  • Digital binocular viewing head with adjustable interpupillary distance
  • Double layer mechanical stage with NA1.25 Abbe condenser & iris diaphragm
  • Variable intensity transmitted LED illumination and coaxial coarse & fine focus knobs
  • Vinyl carrying case with blank slides & cover slips and lens cleaning paper included

Specifications:

  • Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X
  • Eyepieces: widefield WF10X/18 and WF20X
  • Objectives: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
  • Viewing head: 45øInclined 360øswiveling digital binocular
  • Interpupillary distance:sliding adjustment2-3/16" ~ 2-15/16" (55~75mm)
  • Diopter: adjustable on both eyepiece tubes
  • Nosepiece: revolving quadruple
  • Stage: double layer X-Y mechanical stage with scales, size: 4-1/2"x 4-15/16" (115mm x 125mm), translation range: 2-13/16" x 1-3/16" (70mm x 30mm)
  • Condenser & diaphragm: NA1.25 Abbe condenser with iris diaphragm & filter holder,rack & pinion adjustment
  • Transmitted (lower) illuminator: replaceable LED light, intensity adjustable
  • Focus: coaxial coarse & fine knobs on both sides
  • Stage upward moving lock protects objectives and slides
  • All metal mechanical components
  • Lightweight vinyl carrying case included
  • 100-piece blank glass slides with100-piece coverslips and 100-sheet lens cleaning paper included
  • Power supply: AC/DC adapter, 100V-240V (UL approved)
  • Built-in digital camera:
    -Imaging device: 1.3 megapixels,1/2.5" CMOS
    -Effective pixels:1280x1024
    - Maximum still image resolution:1280x1024pixels

    -Frame rate: 6 frames per second at 1280x1024, 10 frames per second at 1024x768
    -Interface:USB2.0( 480MB/second)
    -SNR:>40dB
    -Software compatible with Windows and Mac OS X (see below for version information)
  • Dimension of microscope: 9-1/16" x 7-1/8" x 13" (23cm x 18cm x 33cm)
  • Dimension of vinyl case: 7-7/8" x 7-1/4" x 13-3/8" (20cm x 18.5cm x 34cm)
  • Shipping Package: 11 lbs (5 kg) & 2 lbs (1 kg)

Packing List:

  • Digital binocular microscope
  • 4 DIN objectives: 4X, 10X, 40X, 100X
  • A pair of eyepieces WF10X/18
  • A pair of eyepieces WF20X
  • A bottle of Immersion oil
  • AC adapter(NZ, US and Canada standard)
  • Dust cover
  • Color filters
  • CD (camera driver and software)
  • USB2.0 cable
  • One vinyl carrying case
  • One pack of blank glass slides
  • One pack of coverslips
  • One booklet of lens cleaning paper
