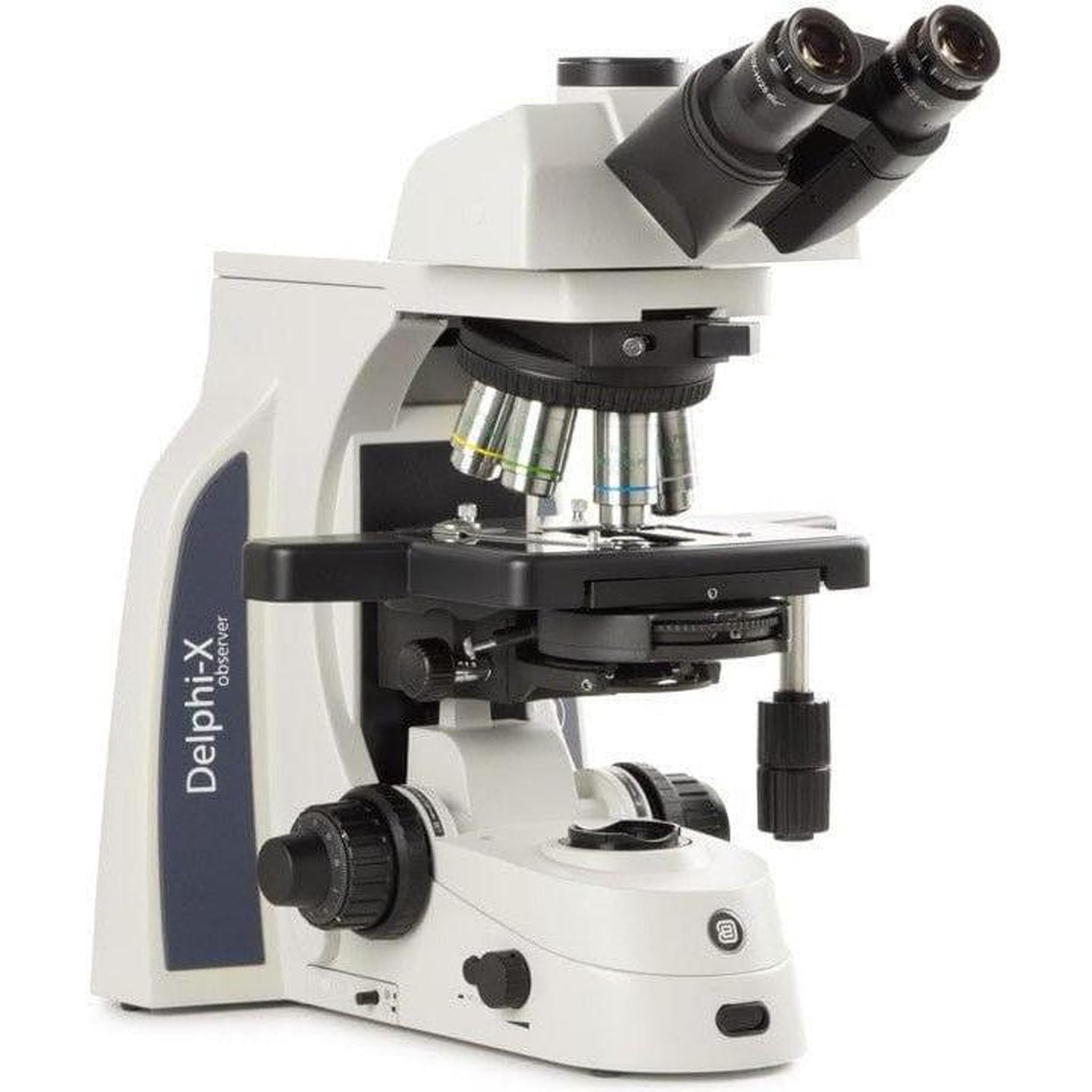

Euromex Delphi-X Series Observer 100X-1000X Trinocular Compound Microscope w/ Plan Phase PLPHi Oil IOS Objectives and 3W NEOLED Illumination

About this product

The Euromex Delphi-X series are state-of-the-art microscopes for advanced Life Science applications.
The outstanding optical performance of the Delphi-X Observer™ with 25mm fields of view and high numerical aperture of the Plan Phase 60mm parfocal EIS objectives enables perfect observations and color rendering at high resolving power. This is the perfect microscope for anatomo-pathologists.

Features:
• Trinocular head
• Super Wide field SWF 10x/25mm eyepieces
• 3W NeoLED illumination
• Sextuple reversed nosepiece
• 60mm parfocal Plan Phase EIS objectives
• M25mm objective thread mounting
• iCare Sensor - Illumination of the microscope automatically switches off shortly after microscopists step away from their position

EYEPIECES
Super Wide field SWF 10x/25 mm, Ø 30mm tubes.
To align the Phase Contrast rings a Centering telescope eyepiece is included.

STANDARD HEAD
Siedentopf trinocular with 30° inclined tubes. Interpupillary distance adjustable between
47-78mm. Optical path selector (100:0 / 80:20 / 0:100). Diopter adjustment on both eyepieces.

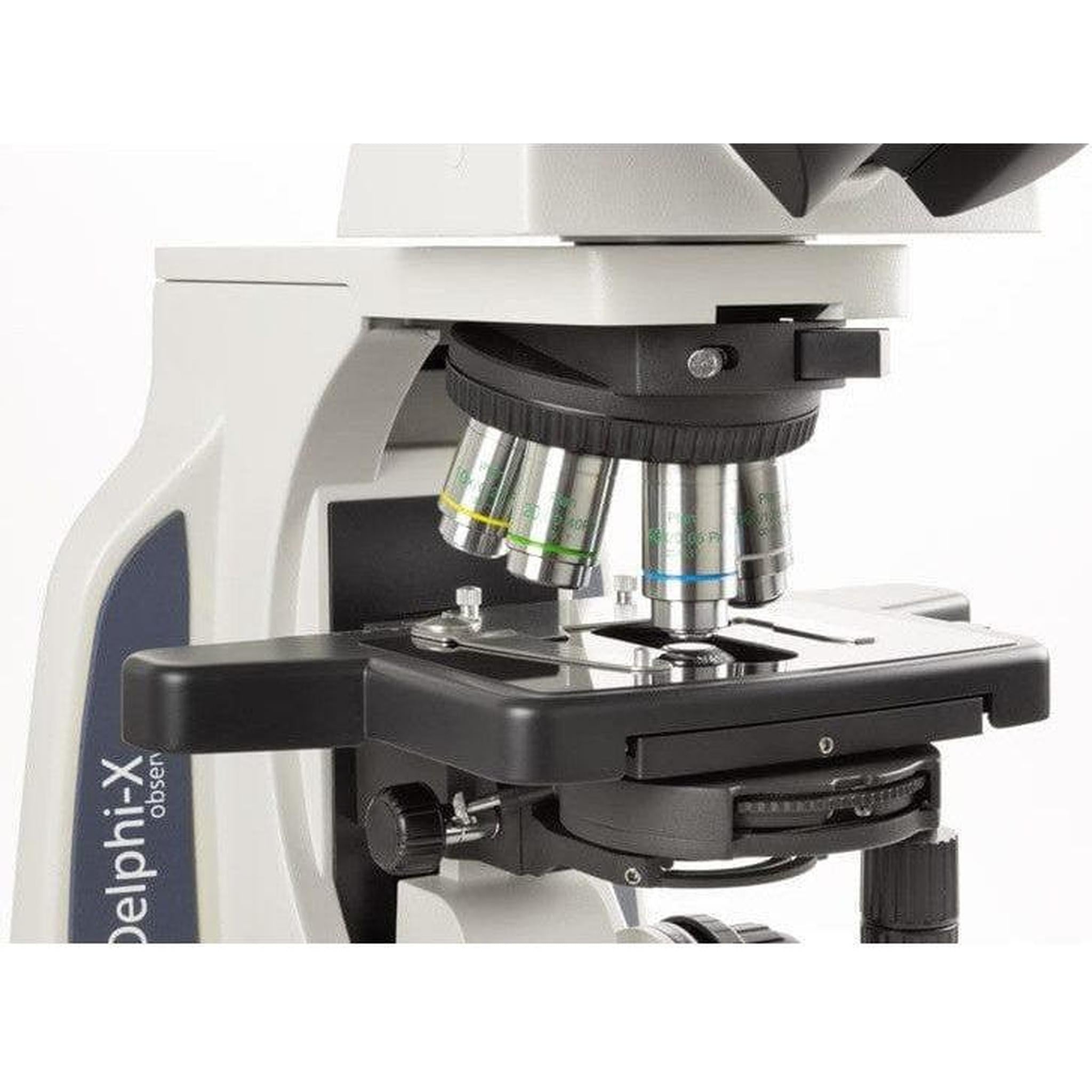

NOSEPIECE
Revolving sextuple reversed nosepiece on ball-bearings with M25 objectives mounting threads.

PLAN PHASE CONTRAST OBJECTIVES
Plan Phase EIS 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 (oil immersion) infinity corrected EIS objectives
All objectives are 60mm parfocal and have a M25mm mounting thread. The S40x and S100x objectives are spring loaded.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.

STAGE
190 x 152mm size with 78 x 32mm integrated right-handed mechanical stage, designed for 2 slides.
Robust and scratch-resistant Gorilla glass stage.

FOCUSING
Coaxial coarse and fine adjustment, 100 graduations, 1 µm precision, 100 μm per rotation, total travel range is approximately 35mm.
Supplied with an adjustable rack stop to prevent damage to sample and objectives
The coarse adjustments are equipped with friction control.

CONDENSER
Height adjustable N.A. 1.25 Zernike phase contrast condenser with phase annuli for 10/20/40x and S100x-oil objectives. To be used with the phase contrast objectives.

DIASCOPIC ILLUMINATION
Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with internal 100-240 V power supply and one neutral density filter
NeoLED™.

The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain three main benefits:
• More oblique light from the LED light source can be captured, which increases the light output significantly.
• Less energy is required to achieve this level of light intensity.
• The larger aperture of NeoLED™ allows the optical systems of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics.

ICARE SENSOR
The unique iCare Sensor system avoids the unnecessary loss of energy.
The illumination of the microscope automatically switches off shortly after microscopists step away from their position.

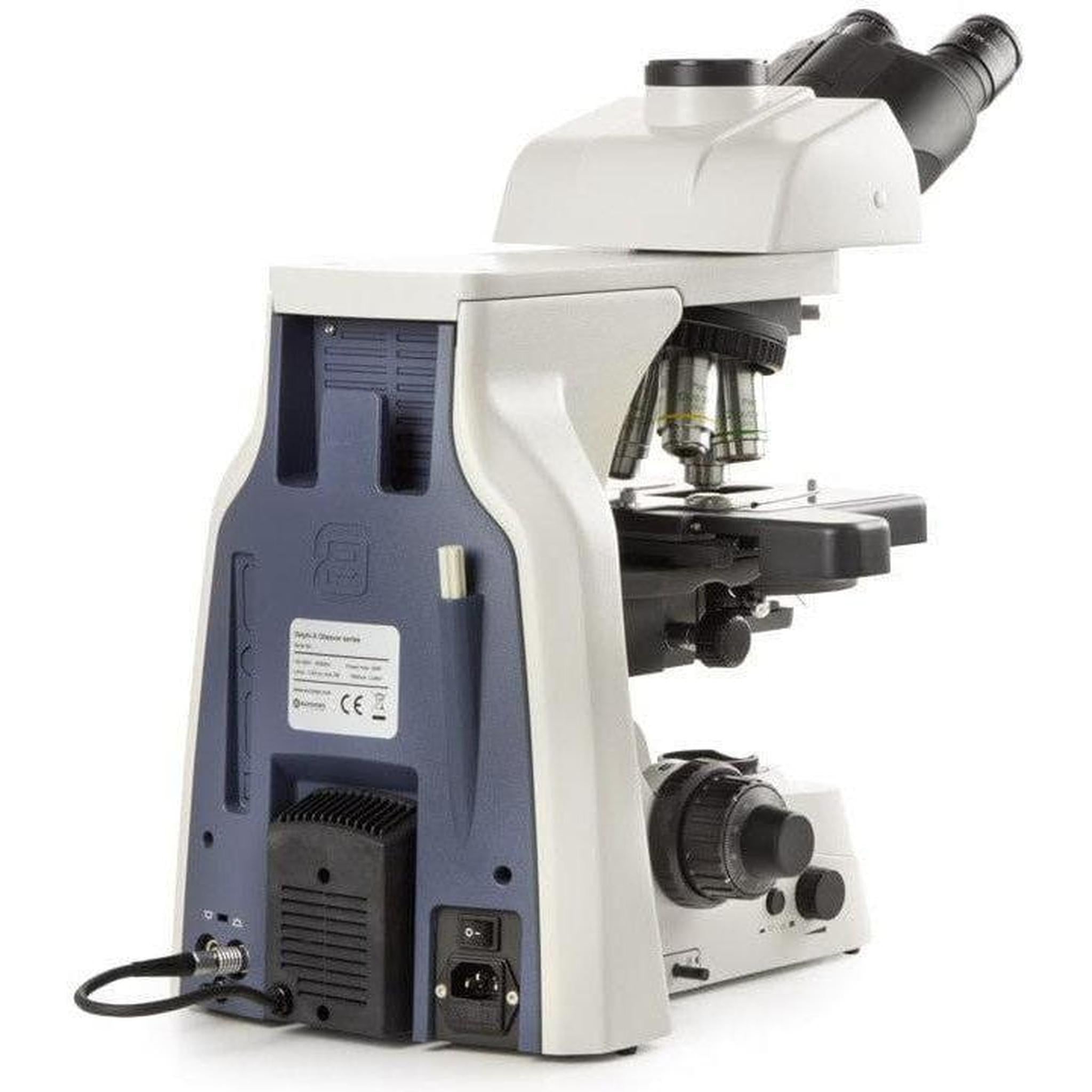

CARRYING GRIP
The carrying grip at the back of the microscope ensures safe transportation of the microscope and the integrated tool & holder makes sure the right tool is always available.

PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil. Centering telescope eyepiece and green filter.
