The most user-friendly telescope ever
Celestron engineers designed NexStar Evolution based on years of customer feedback. It offers many thoughtful design features that combine to provide you with the best possible experience out under the stars.
Forget about batteries or an external power supply. For the first time ever on a consumer telescope, NexStar Evolution includes its own built-in battery. With this ultra-long life lithium-iron-phosphate battery, you'll be able to enjoy stargazing marathons up to 10 hours on a single charge. You can even use NexStar Evolutions USB charge port to top off the other devices in your life that need to stay powered on during an observing session. An intelligent power management system senses when battery levels are low and go into power-saving mode to keep your telescope running for as long as possible.

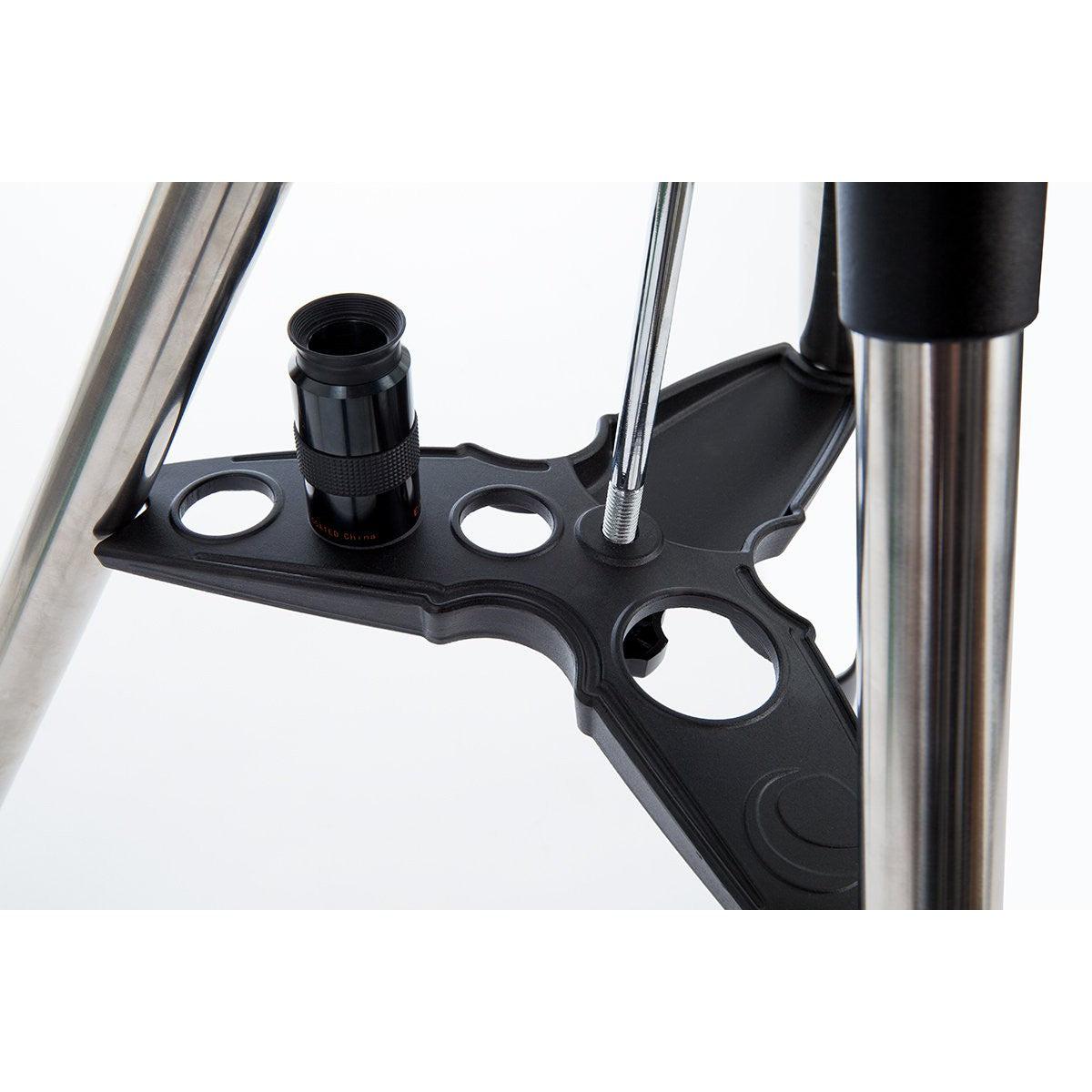

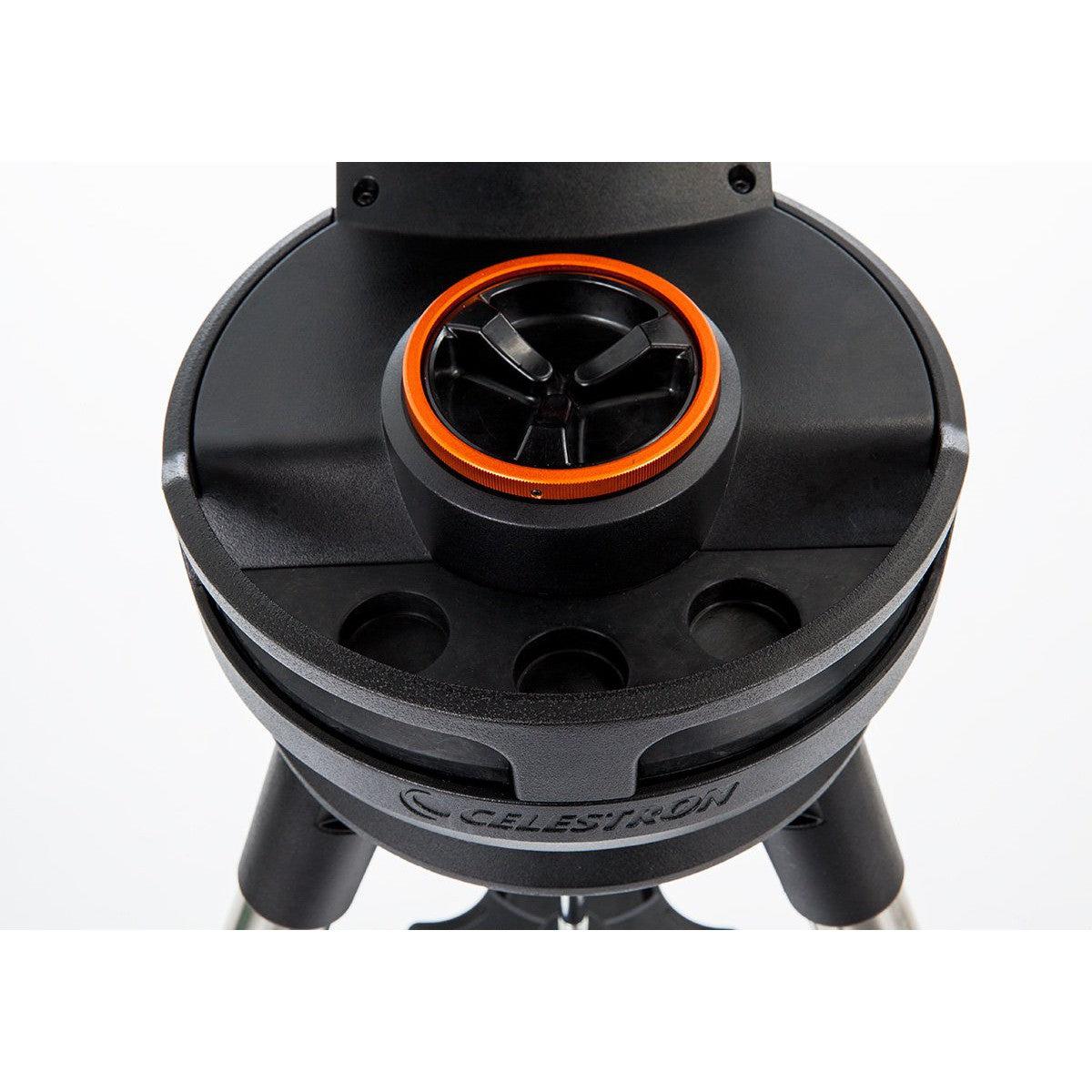

Setting up your NexStar Evolution is quick and painless with large, ergonomic handles. The all-metal tripod features a metal accessory tray with indentations for storing and carrying the tripod. During setup, leg etchings help you achieve a level, uniform height for your telescope. Manual clutches in both altitude and azimuth offer greater flexibility to manually point the telescope when powered off. Store up to 7 eyepieces in 2 accessory trays, one with an adjustable red LED illuminator.
Superior tracking fit for astroimaging
If you're interested in astroimaging, the 8-inch NexStar Evolution is an excellent, affordable way to get started. Its the only fork-mounted telescope in its price range that offers brass worm gears, along with improved motors. NexStar Evolutions tracking accuracy is so impressive, you can capture images of deep-sky objects like the Orion Nebula by simply attaching your DSLR camera. As you progress in the hobby of astroimaging, you can add our HD Pro Wedge to achieve longer exposures for more detailed astrophotos. NexStar Evolution compatible with the wedge when used with the CPC tripod (sold separately).
Of course, the Schmidt-Cassegrain optical system offers bright, sharp views with StarBright XLT optical coatings a great choice for visual observers and budding astroimagers alike.

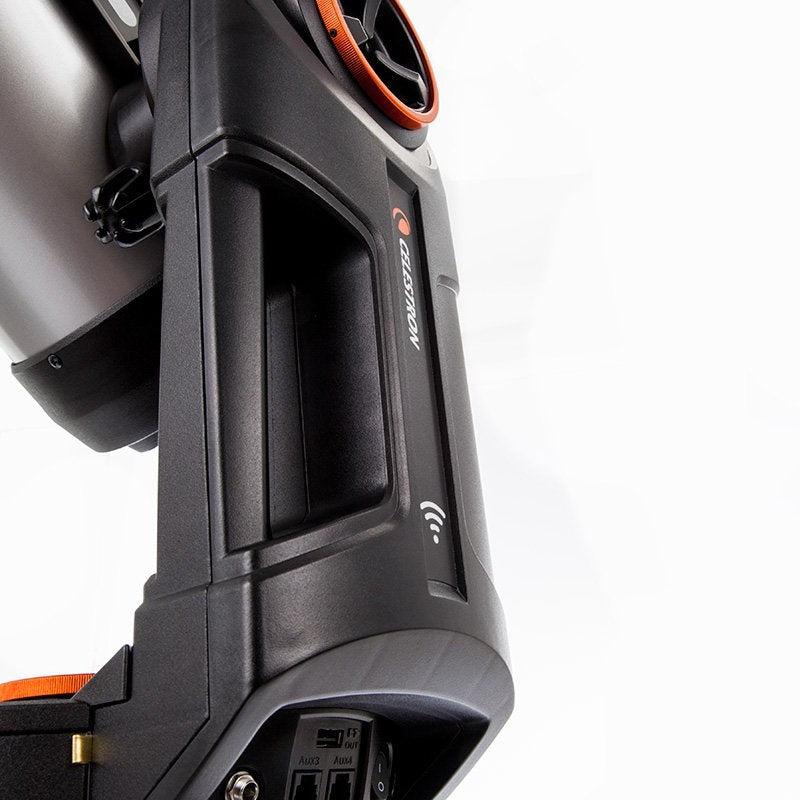

NexStar Evolution is equipped with 4 auxiliary ports--2 on top of the fork and 2 on the bottom. A classic NexStar+ hand control is included but is not necessary when using NexStar Evolution with the mobile app. The telescope also includes a StarPointer finderscope, two 1.25 Plossl eyepieces, a 1.25 star diagonal, and an AC adapter.
Alignment Procedures |
SkyAlign, 3-Star Align, Solar System Align |
Aperture |
203.2 mm |
App Database |
Over 120,000 including 220 of the best deep sky and solar system objects |
Communication Ports |
1 hand control and 3 aux ports for optional accessories |
Finderscope |
StarPointer |
Focal Length |
2032 mm |
Focal Length of Eyepiece 1 |
40 mm |
Focal Length of Eyepiece 2 |
13 mm |
Focal Ratio |
10 |
HIghest Useful Magnification |
480x |
Light Gathering Power (Comp... |
843x |
Limiting Stellar Magnitude |
14 |
Lowest Useful Magnification |
29x |
Magnification of Eyepiece 1 |
51x |
Magnification of Eyepiece 2 |
156x |
Max Slew Speed |
4 degrees per second |
Mount Type |
Single Fork Arm Altazimuth |
Optical Coatings |
StarBright XLT |
Optical Design |
Schmidt Cassegrain |
Optical Tube Length |
17 in |
Power Requirements |
Internal battery included |
Resolution (Dawes) |
0.57 arc seconds |
Resolution (Rayleigh) |
0.69 arc seconds |
Secondary Mirror Obstructio... |
9.77% |
Secondary Mirror Obstruction |
2.5 in (64 mm) |
Star Diagonal |
1.25" |
Total Telescope Kit Weight |
40.6 lbs |
