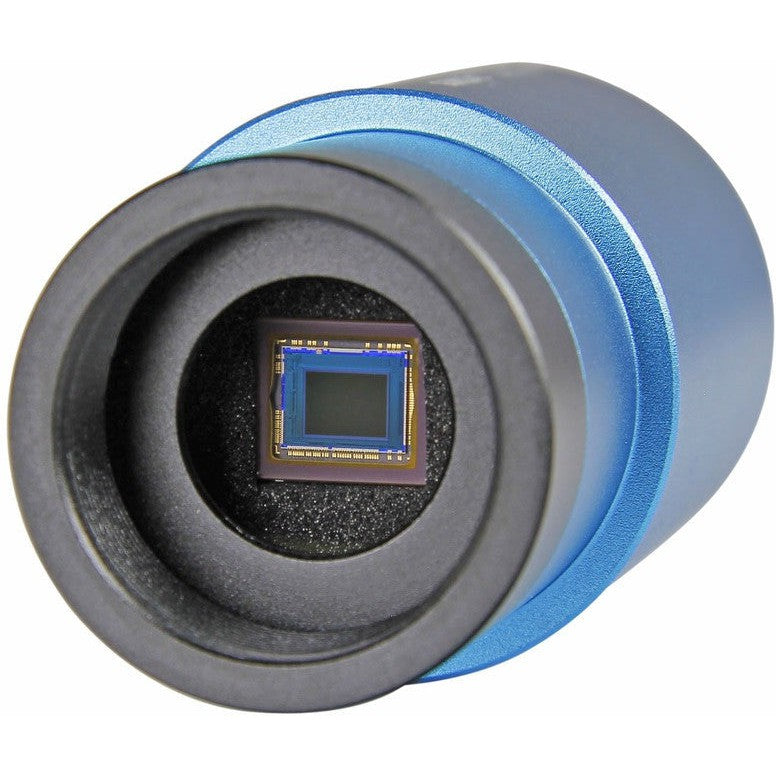

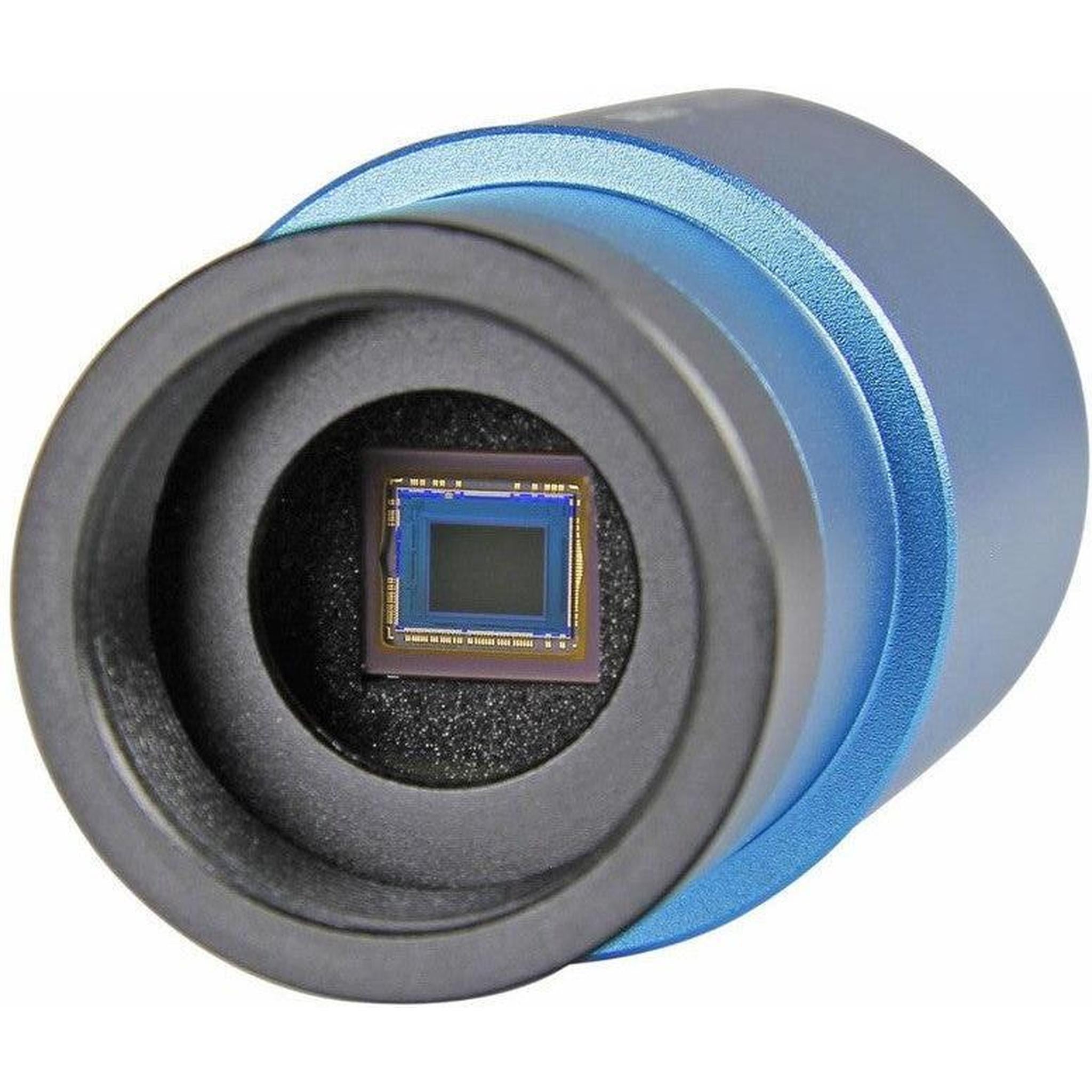

ToupTek 1.2M G3M224C Camera for Sky-Watcher HAC 125

SKU: SWA-G3M224C

ToupTek 1.2M G3M224C Camera for Sky-Watcher HAC 125 - Jacobs Digital

Our Price

$577.00

$577.00

Green truck Usually Ships in 6-10 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

2000

57700

Shipping Quote

When will I receive it?

About this product

The ToupTek G3M224C Colour Planetary Camera is an exceptional entry-level astrophotography camera designed specifically for high-resolution planetary imaging. At the heart of this camera lies the Sony IMX224 CMOS sensor, a back-illuminated sensor with a 3.8 megapixel resolution of 2032 x 1920 pixels. The large 3.75μm pixel size, combined with the back-illuminated architecture, provides high sensitivity and low noise performance, enabling the camera to capture detailed planetary images and videos with exceptional clarity. The sensor boasts a quantum efficiency of up to 75% for efficient light collection and a remarkably low read noise of 0.84e-, minimizing unwanted noise and artifacts. Additionally, the IMX224 sensor offers excellent near-infrared sensitivity, allowing astrophotographers to utilize IR-pass filters to cut through atmospheric turbulence and reveal finer details on planetary surfaces.

Fast Data transfer speed:

One of the standout features of the G3M224C is its incredible data transfer speed. Equipped with a USB 3.0 interface, the camera can achieve an astonishing 150 frames per second at its full 3.8MP resolution, making it ideal for capturing high-resolution videos of fast-moving planetary objects. The built-in 512MB DDR3 memory buffer ensures seamless video recording without dropped frames, even during extended capture sessions.

The G3M224C also features an ST-4 autoguiding port, enabling precise tracking and guiding during long-exposure deep-sky imaging sessions. This versatility allows the camera to be used for both planetary and deep-sky astrophotography applications.

Constructed with a robust aluminum alloy body, the G3M224C is built to withstand the rigors of astrophotography, while its compact 1.25" barrel size ensures easy integration with most telescopes and off-axis guiders (OAG not included). The camera is compatible with a wide range of popular astrophotography software, seamlessly integrating into existing imaging workflows.



Features:



Sensitivity:



Specifications:

Sensor
CMOS Sony IMX224C colour
Resolution
1.2 megapixels 1280 x 960
Pixel size
3.75 µm
Sensor size
4.9 mm x 3.7 mm (6.14 mm diagonal)
Quantum efficiency
>75%
Exposure range
0.244 ms - 1000 s
Read noise
0.84 e-
Full well capacity
19,200 e-
Bit rate
12 bit
Speed
150 fps
Shutter type
Rolling shutter
ROI
Supported
Compatibility
Windows, Mac, Linux
Protecting window
AR coated
Ports
USB 3.0 + ST-4
Back focus
12.6 mm
Connections
C-mount
Dimensions
Ø 37 mm; ↨ 87.4 mm
Weight
TBD
Power supply
USB 3.0
